How to run a Web Server from a PHP application

Normally we deploy our PHP applications in a webserver (such as apache, nginx, …). I used to have one apache webserver in my personal computer to play with my applications, but from time to now I preffer to use PHP’s built-in webserver for my experiments. It’s really simple. Just run:

php -S 0.0.0.0:8080

and we’ve got one PHP webserver at our current directory. With another languages (such as node.js, Python) we can start a Web Server from our application. For example with node.js:

var http = require('http');
http.createServer(function (req, res) {
  res.writeHead(200, {'Content-Type': 'text/plain'});
  res.end('Hello World\n');
}).listen(8080, '0.0.0.0');
console.log('Server running at http://0.0.0.0:8080');

With PHP we cannot do it. Sure? That assertion isn’t really true. We can do it. I’ve just create one small library to do it in two different ways. First running the built-in web server and also running one React web server.

I want to share the same interface to start the server. In this implementation we will register one callback to handle incomming requests. This callback will accept a Symfony\Component\HttpFoundation\Request and it will return a Symfony\Component\HttpFoundation\Response. Then we will start our server listening to one port and we will run our callback per Request (a simple implementeation of the reactor pattern)

We will create a static factory to create the server

namespace G\HttpServer;
use React;

class Builder
{
    public static function createBuiltInServer($requestHandler)
    {
        $server = new BuiltInServer();
        $server->registerHandler($requestHandler);

        return $server;
    }

    public static function createReactServer($requestHandler)
    {
        $loop   = React\EventLoop\Factory::create();
        $socket = new React\Socket\Server($loop);

        $server = new ReactServer($loop, $socket);
        $server->registerHandler($requestHandler);

        return $server;
    }
}

Each server (BuiltIn, and React) has its own implementation.

And basically that’s all. We can run a simple webserver with the built-in server

use G\HttpServer\Builder;
use Symfony\Component\HttpFoundation\Request;

Builder::createBuiltInServer(function (Request $request) {
        return "Hello " . $request->get('name');
    })->listen(1337);

Or the same thing but with React

use G\HttpServer\Builder;
use Symfony\Component\HttpFoundation\Request;

Builder::createReactServer(function (Request $request) {
        return "Hello " . $request->get('name');
    })->listen(1337);

As you can see our callback handles one Request and returns one Response (The typical HttpKernel), because of that we also can run one Silex application:
With built-in:

use G\HttpServer\Builder;
use Symfony\Component\HttpFoundation\Request;

$app = new Silex\Application();

$app->get('/', function () {
        return 'Hello';
    });

$app->get('/hello/{name}', function ($name) {
        return 'Hello ' . $name;
    });

Builder::createBuiltInServer(function (Request $request) use ($app) {
        return $app->handle($request);
    })->listen(1337);

And the same with React:

use G\HttpServer\Builder;
use Symfony\Component\HttpFoundation\Request;

$app = new Silex\Application();

$app->get('/', function () {
        return 'Hello';
    });

$app->get('/hello/{name}', function ($name) {
        return 'Hello ' . $name;
    });

Builder::createReactServer(function (Request $request) use ($app) {
        return $app->handle($request);
    })->listen(1337);

As an exercise I also have created one small benchmark (with both implementations) with apache ab running 100 request with a 10 request at the same time. Here you can see the outcomes.

  builtin react
Simple response
ab -n 100 -c 10 http://localhost:1337/
Time taken for tests 0.878 seconds 0.101 seconds
Requests per second (mean) 113.91 [#/sec] 989.33 [#/sec]
Time per request (mean) 87.791 [ms] 10.108 [ms]
Time per request (mean across all concurrent requests) 8.779 [ms] 1.011 [ms]
Transfer rate 21.02 [Kbytes/sec] 112.07 [Kbytes/sec]
Silex application
ab -n 100 -c 10 http://localhost:1337/
Time taken for tests 2.241 seconds 0.247 seconds
Requests per second (mean) 44.62 [#/sec] 405.29 [#/sec]
Time per request 224.119 [ms] 24.674 [ms]
Time per request (mean across all concurrent requests) 22.412 [ms] 2.467 [ms]
Transfer rate 10.89 [Kbytes/sec] 75.60 [Kbytes/sec]
ab -n 100 -c 10 http://localhost:1337/hello/gonzalo
Time taken for tests 2.183 seconds 0.271 seconds
Requests per second (mean) 45.81 [#/sec] (mean) 369.67 [#/sec]
Time per request (mean) 218.290 [ms] (mean) 27.051 [ms]
Time per request (mean across all concurrent requests) 21.829 [ms] 2.705 [ms]
Transfer rate 11.54 [Kbytes/sec] 71.84 [Kbytes/sec]

Built-in web server is not suitable for production environments, but React would be a useful tool in some cases (maybe not good for running Facebook but good enough for punctual situations).

Library is available at github and also you can use it with composer

Deploying tips for Web Applications

I’ve seen the same error in too many projects. When we start a project normally we start with a paper, a white board or something similar. After the first drafts we start coding. In the early stage of the project we want to build a working prototype. It’s natural. It’s important to have a working prototype as fast as we can. The things are different in a browser. All works within a white board, but with a working alpha release we will feel “real” sensations.

Now the project is growing up. Maybe we need several weeks to going live yet. Maybe we haven’t even decide the hosting, but there is something we need to take into account even in the early stages of the project. We need to build an automate deploy system. The way we’re going to use to put our code in the production server. It’s mandatory to have an automated way to deploy our application. Deploy code in production must be something really trivial. Must be done with a few clicks. Hard to deploy means we are not agile, and that is not cool.

If the project is a “professional” one (someone pay/will pay for it), problems in the deploy means down times. Down times are not good. Our clients don’t pay us for those kind of problems. If the project is a personal project, a hard deploy system means that we’re going to be very lazy to improve our project. Deploy by hand is good idea only if we never forget anything and if we’re perfect. If not, it’s always better to have a build script.

It’s important to define different environments within our application. Modern frameworks such as symfony2 has a great way to define environments. It’s important to take into account that. Our code must be exactly the same in our development environment and at the production one. Exactly the same means exactly the same. If we need to change the code before deploy it into production server we’ve got a problem. A simple trick to define environments is create two ini files one with development data (database dsn, urls, paths) and another one to production. We can also use enviromnent variables, but keeping the source code identical.

So we need at least a build script to the source code, but we must remember that we also need to deploy database changes. Deploy database changes is a hard work, but source code can be trivial if we take into account a few details:

  • Source code must be the same in all environments. Differences must be placed in configuration files.
  • Never perform file-system operations directly with the console. We need to create scripts and execute the script to perform file-system operations. (folder creation, write-enables to log and caches, …)

If we follow those simple rules we can create a very simple build scrip with our scm (git, mercurial).

The idea is very simple. One mercurial repository on development server. Another one on production server.

// .hg/hgrc
[paths]
prod = ssh://user@host//path/to/app

[hooks]
changegroup = hg update

Now we can easily clone the development repository. A simple “hg push prod” will push code to the production server and update the working repository. If you don’t have ssh access to the server maybe you need to build a custom script. Please do it. “Waste” your time creating your build script. It must works like a charm. Your life will be better. Another tools that will help us to build deploy scripts:

http://capifony.org/
https://github.com/capistrano/capistrano
http://www.phing.info/trac/

And that’s all. Regards, Gonzalo

Populating datagrid techniques with PHP

Today I want to speak about populating datagrid techniques with PHP. At least in my daily work datagrids and tabular data are very common, because of that I want to show two different techniques when populating datagrids with data from our database. Maybe it’s obvious, but I want to show the differences. Let’s start.

Imagine we need to fetch data from our database and show it in a datagrid. Let’s do the traditional way. I haven’t use any framework for this example. Just old school spaghetti code.

$dbh = new PDO('pgsql:dbname=mydb;host=localhost', 'gonzalo', 'password');
$dbh->setAttribute(PDO::ATTR_ERRMODE, PDO::ERRMODE_EXCEPTION);

$stmt = $dbh->prepare('SELECT * FROM test.tbl1 limit 10');
$stmt->setFetchMode(PDO::FETCH_ASSOC);
$stmt->execute();

$data = $stmt->fetchAll();

$table = "";
$table.= "<table>";
foreach ($data as $ow) {
    $table.= "<tr>";
        foreach ($ow as $item) {
            $table.= "<td>{$item}</td>";
        }
    $table.= "</tr>";
}
$table.= "</table>";
?>
<!DOCTYPE html>
<html>
    <head>
        <meta charset="utf-8" />
        <title>inline grid</title>
    </head>
    <h1>inline grid</h1>
    <body>
        <?php echo $table; ?>
        <script type="text/javascript" src=" https://ajax.googleapis.com/ajax/libs/jquery/1.6.2/jquery.min.js"></script>
    </body>
</html>

And that’s all. The code works, and we’ve got or ugly datagrid with the data from our DB. Where’s the problem? If our “SELECT” statement is fast enougth and our connection to the database is good too, the page load will be good, indeed. But what happens if or query is slow (or we even have more than one)? The whole page load will be penalized due to our slow query. The user won’t see anything until our server finish with all the work. That means bad user experience. The alternative is load the page first (without populated datagrid, of course) and when it’s ready, we load with ajax the data from the server (JSON) and we populate the datagrid with javaScript.

Page without the populated datagrid:

<!DOCTYPE html>
<html>
    <head>
        <meta charset="utf-8" />
        <title>grid ajax</title>
    </head>
    <h1>grid ajax</h1>
    <body>
        <table id='grid'></table>

        <script type="text/javascript" src=" https://ajax.googleapis.com/ajax/libs/jquery/1.6.2/jquery.min.js"></script>
        <script type="text/javascript">
        $(function(){
            $.getJSON("json.php", function(json){
                        for (var i=0;i<json.length;i++) {
                            $('#grid').append("<tr><td>" + json[i].id + "</td><td>" + json[i].field1 + "</td></tr>")
                        }
                    });
        });
        </script>
    </body>
</html>

JSON data fron the server:

$dbh = new PDO('pgsql:dbname=mydb;host=localhost', 'gonzalo', 'password');
$dbh->setAttribute(PDO::ATTR_ERRMODE, PDO::ERRMODE_EXCEPTION);

$stmt = $dbh->prepare('SELECT * FROM test.tbl1 limit 10');
$stmt->setFetchMode(PDO::FETCH_ASSOC);
$stmt->execute();

$data = $stmt->fetchAll();

header('Cache-Control: no-cache, must-revalidate');
header('Expires: Mon, 26 Jul 1997 05:00:00 GMT');
header('Content-type: application/json');

echo json_encode($data);

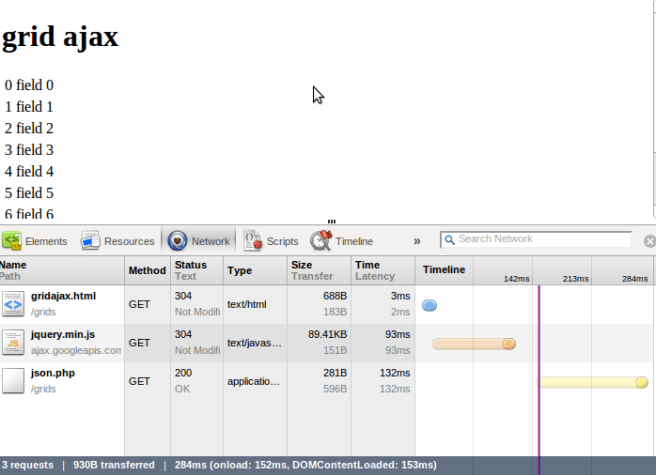

The outcome of this second technique is the same than the first one, but now user will see the page faster than the first technique and data will load later. Probably the total time to finish all the work is better in the classical approach, but the UX will be better with the second one. Here you can see the times taken from Chorme’s network window:

Even though the total time is better in the inline grid example: 156ms vs 248ms, 1 http request vs 3 HTTP request. The user will see the page (without data) faster with the grid data example.

What’s better. As always it depends on our needs. We need to balance and choose the one that fits with your requirements.

Probably the JavaScript code that I use to populate the datagrid in the second technique could be written in a more efficient way (there’s also plugins to do it). I only want to show the indirect way to create HTML to improve the user experience of our applications.

Jugando con FriendFeed y Appengine: tv-sms.appspot.com

INTRODUCCIÓN

Estas navidades me he propuesto publicar un aplicación con google app engine.
La idea de la aplicación es simple. Hoy en día es muy común disponer de un portátil o netbook y estar en la sala viendo la tele con nuestro portátil. Los canales de televisión suelen permitir que la gente mande sms a unos números de teléfono y estos mensajes aparezcan en la parte inferior de nuestras pantallas. Personalmente no lo he usado nunca pero parece ser que el servicio tiene mucho éxito. Estos mensajes tienen un coste bastante elevado y son una fuente de ingresos para los canales y para las operadoras. La idea de la aplicación es hacer esto por Internet agarrándonos los sms aprovechando que tenemos un portátil en la sala junto a nosotros.

Los requisitos que me he impuesto son los siguientes:

  • No dispongo de tiempo ilimitado. Tengo que publicarla en un par de días.
  • Usar la API de FriendFeed.
  • La aplicación tiene que limitar en lo posible el uso de recursos en el servidor.
  • Publicar el código en google code.
  • Subir la aplicación a appengine: http://tv-sms.appspot.com/
  • Escribir una entrada en mi blog explicando como esta hecha.

Pues bien ya estoy en el ultimo punto así que paso a explicar como funciona.

FUNCIONAMIENTO DE LA APLICACIÓN

Creación de los grupos

La idea es la siguiente me creo con mi usuario un grupo público en FriendFeed por cada canal de televisión y después me creo un archivo javascript con la configuración de los canales:

var chanels = {
    'tvsmstve1' : 'TVE 1',
    'tvsmstve2' : 'TVE 2',
    'tvsms-antena3' : 'Antena 3',
    'tvsmscuatro' : 'Cuatro',
    'tvsms-tele5' : 'Tele 5',
    'tvsmslasexta' : 'La Sexta'
}

Entiendo que esta información la debería guardar en algún tipo de Base de datos pero por ahora se queda así. Al arrancar la aplicación leo esto y lo muestro en pantalla

function populateChanels() {
    $.each(chanels, function(i, chanel) {
        $('#chanels').append("
	<li class="status"><a class="chanelsLink" onclick="start(\&quot;&quot; + i + &quot;\&quot;)" href="#">" + chanel + "</a></li>
");
    });
}

Listado de las últimas modificaciones de los grupos

Friendfeed tiene una API muy sencilla de usar usando REST y JSONP. Para obtener una la lista de actualizaciones de un canal simplemente tenemos que hacer una petición GET a la siguiente url:


http://friendfeed-api.com/v2/feed/grupoid

Por lo tanto y teniendo en cuenta que voy a utilizar jQuery para mi aplicación creo la siguiente función:

var users = {};
var frmInput = "
<div class="share"><form action="?" method="post"><input id="body" style="width: 300px;" name="body" type="text" /><input id="submit" type="submit" value="Post" /></form></div>
";

function _getLi(body, user, date) {
    var fDade = formatFriendFeedDate(date);
    return "
	<li class="status"><span class="thumb vcard author"><img height='50' width='50' src='http://friendfeed-api.com/v2/picture/" + user + "?size=medium' alt='" + user + "'/></span><span class="status-body">" + user + " : " + body + "<span class="meta entry-meta">" + fDade + "</span></span></li>
";
}

function list(id) {
    var txt = '';
    $.getJSON("http://friendfeed-api.com/v2/feed/" + id + "?callback=?",
        function (data) {
            $('#ff').html('');
            $.each(data.entries, function(i, entry) {
                users[entry.from.id] = entry.from.id;
                txt+= _getLi(entry.body, entry.from.id, entry.date);
            });
            $("#ff").html(txt);
            if (logged) {
                $('#inputForm').html(frmInput);
            }
            $('#txtCanal').html(chanels[id]);

            cometClient(id);
        });
}

En esta función lo que estoy haciendo es obtener la lista en formato JSON y añadirla a un ol. Además de la lista le añado un formulario para que el usuario pueda introducir comentarios y arranco el cliente comet pero esto lo explicaré más adelante.

Actualizaciones en tiempo real

Lo que mas me gusta de Friendfeed y lo que me ha hecho decantarme por el y no por Twitter es que Friendfeed me permite lo que llama Real-Time updates. Esta caracteristica, que hasta donde yo se Twitter no nos la da nos permite hacer de forma muy sencilla clientes Comet. Aquí va el mio:

function cometClient(id, cursor) {
    var url = "http://friendfeed-api.com/v2/updates/feed/" + id + "?callback=?&timeout=5";
    if (cursor) {
        url += "&cursor==" + cursor;
    }
    $.getJSON(url, function (data) {
        $.each(data.entries, function(i, entry) {
            $('#ff').prepend(_getLi(entry.body, entry.from.id, entry.date));
        });
        t = setTimeout(function() {cometClient(id, data.realtime.cursor)}, 2000);
    });
}

Pues nada gracias a esto tengo actualizaciones a tiempo real de mi aplicación y sin usar ningún recurso de servidor.

Nuevo comentario

Para crear un nuevo comentario la API de FriendFeed no me deja hacerlo directamente desde javascript. Esto es una pequeña faena ya que si no tuviera esta restricción toda la aplicación correría sobre javascript y no necesitaría nada de código en servidor. Pero al no ser posible me tengo que autentificar con OAuth desde google appengine. Para hacer esto me baso en la aplicación de ejemplo que nos proporciona FriendFeed para jugar con su API.

El citado ejemplo hace todo lo que necesito y lo hace todo en el servidor. Ya que yo solo voy a usar la parte que FriendFeed denomina creating an entry, me limito a leer el código y eliminar la parte que no necesito. Como una de mis premisas es que no dispongo de tiempo ilimitado para esta aplicación no me voy a dedicar a entender cada linea de código. Me dedico a entender mas o menos como funciona.

En mi aplicación la opción de nuevo comentario va a ser llamada desde javascript y espero un JSON por lo que a parte de eliminar las partes del código que no me interesan, hago unas pequeñas modificaciones para que la respuesta sea JSON

class EntryHandler(webapp.RequestHandler):
    @authenticated
    def post(self):
        try:
            entry = self.friendfeed.post_entry(
                body=self.request.get("body"),
                to=self.request.get("to"))
            out = {'error' : 0}
        except:
            out = {"redirect" : '/oauth/authorize'}
        self.response.headers['Content-Type'] = 'application/json'
        jsonData = out
        self.response.out.write(simplejson.dumps(jsonData))
        return
...

application = webapp.WSGIApplication([
    (r"/oauth/callback", OAuthCallbackHandler),
    (r"/oauth/authorize", OAuthAuthorizeHandler),
    (r"/oauth/check", OAuthCheck),
    (r"/a/entry", EntryHandler),
])

El código es bastante mejorable (no hay gestión de errores y no se hace nada con la variable entry) pero hace lo que quiero: publica una entrada en FriendFeed.

Autentificando

Para publicar entradas en FrinedFeed necesito estar autentificado por lo cual quiero que la aplicación solo muestre el formulario de entrada de datos si el usuario esta autentificado. Para hacer esto hago una llamada asíncrona al servidor al cargar la aplicación que me mire si el usuario esta o no autentificado

function checkFfLogin() {
    $.post("/oauth/check", {}, function (data) {
        if (data.redirect) {
            logged = false;
        } else {
            if (data.ok && data.ok==1) {
                logged = true;
            }
        }

        if (logged == true) {
            $('#login').html('');
        } else {
            $('#login').html("<a href="&quot; + data.redirect + &quot;"><img border='0' src='/sign-in-with-friendfeed.png' alt='Sign in with FriendFeed'></a>");
        }
        populateChanels();
    }, "json");
}

Esto se complementa con la parte del servidor.

class OAuthCheck(webapp.RequestHandler):
    @authenticated
    def post(self):
        cookie_val = parse_cookie(self.request.cookies.get("FF_API_AUTH"))
        try:
            key, secret, username = cookie_val.split("|")
            self.response.headers['Content-Type'] = 'application/json'
            jsonData = {"ok" : 1}
            self.response.out.write(simplejson.dumps(jsonData))
        except:
            self.response.headers['Content-Type'] = 'application/json'
            jsonData = {"redirect" : '/oauth/authorize'}
            self.response.out.write(simplejson.dumps(jsonData))
        return

Cambio de canal

Ya solo queda que el usuario pueda cambiar de canal.

var selectedChanel;
function start(group) {
    $('#body').val('');
    selectedChanel = group;
    if (t) {
        clearTimeout(t);
    }
    $('#ff').html('<img src="/ajax-loader.gif" alt="loader"/>... cargando ' + chanels[group]);

    list(group);
}

FIN

Pues bien la aplicación ya esta operativa. Entiendo que tiene bastantes lagunas pero funciona y he cumplido las premisas que me había propuesto: Un par de tardes para hacerla y otra más para escribir la entrada en el blog y subirla al appengine.

Enlace a la aplicación: http://tv-sms.appspot.com/
Código fuente: http://code.google.com/p/gam-tvsms/

Follow

Get every new post delivered to your Inbox.

Join 989 other followers
