Django reactive users with Celery and Channels

Today I want to build a prototype. The idea is to create two Django applications. One application will be the master and the other one will the client. Both applications will have their User model but each change within master User model will be propagated through the client (or clients). Let me show you what I’ve got in my mind:

We’re going to create one signal in User model (at Master) to detect user modifications:

  • If certain fields have been changed (for example we’re going to ignore last_login, password and things like that) we’re going to emit a event
  • I normally work with AWS, so the event will be a SNS event.
  • The idea to have multiple clients, so each client will be listening to one SQS queue. Those SQSs queues will be mapped to the SNS event.
  • To decouple the SNS sending og the message we’re going to send it via Celery worker.
  • The second application (the Client) will have one listener to the SQS queue.
  • Each time the listener have a message it will persists the user information within the client’s User model
  • And also it will emit on message to one Django Channel’s consumer to be sent via websockets to the browser.

The Master

We’re going to emit the event each time the User model changes (and also when we create or delete one user). To detect changes we’re going to register on signal in the pre_save to mark if the model has been changed and later in the post_save we’re going to emit the event via Celery worker.

@receiver(pre_save, sender=User)
def pre_user_modified(sender, instance, **kwargs):
    instance.is_modified = None

    if instance.is_staff is False and instance.id is not None:
        modified_user_data = UserSerializer(instance).data
        user = User.objects.get(username=modified_user_data['username'])
        user_serializer_data = UserSerializer(user).data

        if user_serializer_data != modified_user_data:
            instance.is_modified = True

@receiver(post_save, sender=User)
def post_user_modified(sender, instance, created, **kwargs):
    if instance.is_staff is False:
        if created or instance.is_modified:
            modified_user_data = UserSerializer(instance).data
            user_changed_event.delay(modified_user_data, action=Actions.INSERT if created else Actions.UPDATE)

@receiver(post_delete, sender=User)
def post_user_deleted(sender, instance, **kwargs):
    deleted_user_data = UserSerializer(instance).data
    user_changed_event.delay(deleted_user_data, action=Actions.DELETE)

We need to register our signals in apps.py

from django.apps import AppConfig

class MasterConfig(AppConfig):
    name = 'master'

    def ready(self):
        from master.signals import pre_user_modified
        from master.signals import post_user_modified
        from master.signals import post_user_deleted

Our Celery task will send the message to sns queue

@shared_task()
def user_changed_event(body, action):
    sns = boto3.client('sns')
    message = {
        "user": body,
        "action": action
    }
    response = sns.publish(
        TargetArn=settings.SNS_REACTIVE_TABLE_ARN,
        Message=json.dumps({'default': json.dumps(message)}),
        MessageStructure='json'
    )
    logger.info(response)

AWS

In Aws We need to create one SNS messaging service and one SQS queue linked to this SNS.

The Client

First we need one command to run the listener.

class Actions:
    INSERT = 0
    UPDATE = 1
    DELETE = 2

switch_actions = {
    Actions.INSERT: insert_user,
    Actions.UPDATE: update_user,
    Actions.DELETE: delete_user,
}

class Command(BaseCommand):
    help = 'sqs listener'

    def handle(self, *args, **options):
        self.stdout.write(self.style.WARNING("starting listener"))
        sqs = boto3.client('sqs')

        queue_url = settings.SQS_REACTIVE_TABLES

        def process_message(message):
            decoded_body = json.loads(message['Body'])
            data = json.loads(decoded_body['Message'])

            switch_actions.get(data['action'])(
                data=data['user'],
                timestamp=message['Attributes']['SentTimestamp']
            )

            notify_to_user(data['user'])

            sqs.delete_message(
                QueueUrl=queue_url,
                ReceiptHandle=message['ReceiptHandle'])

        def loop():
            response = sqs.receive_message(
                QueueUrl=queue_url,
                AttributeNames=[
                    'SentTimestamp'
                ],
                MaxNumberOfMessages=10,
                MessageAttributeNames=[
                    'All'
                ],
                WaitTimeSeconds=20
            )

            if 'Messages' in response:
                messages = [message for message in response['Messages'] if 'Body' in message]
                [process_message(message) for message in messages]

        try:
            while True:
                loop()
        except KeyboardInterrupt:
            sys.exit(0)

Here we persists the model in Client’s database

def insert_user(data, timestamp):
    username = data['username']
    serialized_user = UserSerializer(data=data)
    serialized_user.create(validated_data=data)
    logging.info(f"user: {username} created at {timestamp}")

def update_user(data, timestamp):
    username = data['username']
    try:
        user = User.objects.get(username=data['username'])
        serialized_user = UserSerializer(user)
        serialized_user.update(user, data)
        logging.info(f"user: {username} updated at {timestamp}")
    except User.DoesNotExist:
        logging.info(f"user: {username} don't exits. Creating ...")
        insert_user(data, timestamp)

def delete_user(data, timestamp):
    username = data['username']
    try:
        user = User.objects.get(username=username)
        user.delete()
        logging.info(f"user: {username} deleted at {timestamp}")
    except User.DoesNotExist:
        logging.info(f"user: {username} don't exits. Don't deleted")

And also emit one message to channel’s consumer

def notify_to_user(user):
    username = user['username']
    serialized_user = UserSerializer(user)
    emit_message_to_user(
        message=serialized_user.data,
        username=username, )

Here the Consumer:

class WsConsumer(AsyncWebsocketConsumer):
    @personal_consumer
    async def connect(self):
        await self.channel_layer.group_add(
            self._get_personal_room(),
            self.channel_name
        )

    @private_consumer_event
    async def emit_message(self, event):
        message = event['message']
        await self.send(text_data=json.dumps(message))

    def _get_personal_room(self):
        username = self.scope['user'].username
        return self.get_room_name(username)

    @staticmethod
    def get_room_name(room):
        return f"{'ws_room'}_{room}"

def emit_message_to_user(message, username):
    group = WsConsumer.get_room_name(username)
    channel_layer = get_channel_layer()
    async_to_sync(channel_layer.group_send)(group, {
        'type': WsConsumer.emit_message.__name__,
        'message': message
    })

Our consumer will only allow to connect only if the user is authenticated. That’s because I like Django Channels. This kind of thing are really simple to to (I’ve done similar things using PHP applications connected to a socket.io server and it was a nightmare). I’ve created a couple of decorators to ensure authentication in the consumer.

def personal_consumer(func):
    @wraps(func)
    async def wrapper_decorator(*args, **kwargs):
        self = args[0]

        async def accept():
            value = await func(*args, **kwargs)
            await self.accept()
            return value

        if self.scope['user'].is_authenticated:
            username = self.scope['user'].username
            room_name = self.scope['url_route']['kwargs']['username']
            if username == room_name:
                return await accept()

        await self.close()

    return wrapper_decorator

def private_consumer_event(func):
    @wraps(func)
    async def wrapper_decorator(*args, **kwargs):
        self = args[0]
        if self.scope['user'].is_authenticated:
            return await func(*args, **kwargs)

    return wrapper_decorator

That’s the websocket route

from django.urls import re_path

from client import consumers

websocket_urlpatterns = [
    re_path(r'ws/(?P<username>\w+)$', consumers.WsConsumer),
]

Finally we only need to connect our HTML page to the websocket

{% block title %}Example{% endblock %}
{% block header_text %}Hello <span id="name">{{ request.user.first_name }}</span>{% endblock %}

{% block extra_body %}
  <script>
    var ws_scheme = window.location.protocol === "https:" ? "wss" : "ws"
    var ws_path = ws_scheme + '://' + window.location.host + "/ws/{{ request.user.username }}"
    var ws = new ReconnectingWebSocket(ws_path)
    var render = function (key, value) {
      document.querySelector(`#${key}`).innerHTML = value
    }
    ws.onmessage = function (e) {
      const data = JSON.parse(e.data);
      render('name', data.first_name)
    }

    ws.onopen = function () {
      console.log('Connected')
    };
  </script>
{% endblock %}

Here a docker-compose with the project:

version: '3.4'

services:
  redis:
    image: redis
  master:
    image: reactive_master:latest
    command: python manage.py runserver 0.0.0.0:8001
    build:
      context: ./master
      dockerfile: Dockerfile
    depends_on:
      - "redis"
    ports:
      - 8001:8001
    environment:
      REDIS_HOST: redis
  celery:
    image: reactive_master:latest
    command: celery -A master worker --uid=nobody --gid=nogroup
    depends_on:
      - "redis"
      - "master"
    environment:
      REDIS_HOST: redis
      SNS_REACTIVE_TABLE_ARN: ${SNS_REACTIVE_TABLE_ARN}
      AWS_DEFAULT_REGION: ${AWS_DEFAULT_REGION}
      AWS_ACCESS_KEY_ID: ${AWS_ACCESS_KEY_ID}
      AWS_SECRET_ACCESS_KEY: ${AWS_SECRET_ACCESS_KEY}
  client:
    image: reactive_client:latest
    command: python manage.py runserver 0.0.0.0:8000
    build:
      context: ./client
      dockerfile: Dockerfile
    depends_on:
      - "redis"
    ports:
      - 8000:8000
    environment:
      REDIS_HOST: redis
  listener:
    image: reactive_client:latest
    command: python manage.py listener
    build:
      context: ./client
      dockerfile: Dockerfile
    depends_on:
      - "redis"
    environment:
      REDIS_HOST: redis
      SQS_REACTIVE_TABLES: ${SQS_REACTIVE_TABLES}
      AWS_DEFAULT_REGION: ${AWS_DEFAULT_REGION}
      AWS_ACCESS_KEY_ID: ${AWS_ACCESS_KEY_ID}
      AWS_SECRET_ACCESS_KEY: ${AWS_SECRET_ACCESS_KEY}

And that’s all. Here a working example of the prototype in action:

Source code in my github.

Building real time Python applications with Django Channels, Docker and Kubernetes

Three years ago I wrote an article about webockets. In fact I’ve written several articles about Websockets (Websockets and real time communications is something that I’m really passionate about), but today I would like to pick up this article. Nowadays I’m involved with several Django projects so I want to create a similar working prototype with Django. Let’s start:

In the past I normally worked with libraries such as socket.io to ensure browser compatibility with Websockets. Nowadays, at least in my world, we can assume that our users are using a modern browser with websocket support, so we’re going to use plain Websockets instead external libraries. Django has a great support to Websockets called Django Channels. It allows us to to handle Websockets (and other async protocols) thanks to Python’s ASGI’s specification. In fact is pretty straightforward to build applications with real time communication and with shared authentication (something that I have done in the past with a lot of effort. I’m getting old and now I like simple things :))

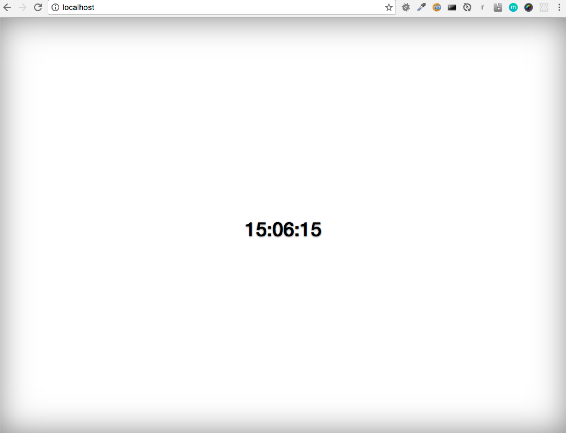

The application that I want to build is the following one: One Web application that shows the current time with seconds. Ok it’s very simple to do it with a couple of javascript lines but this time I want to create a worker that emits an event via Websockets with the current time. My web application will show that real time update. This kind of architecture always have the same problem: The initial state. In this example we can ignore it. When the user opens the browser it must show the current time. As I said before in this example we can ignore this situation. We can wait until the next event to update the initial blank information but if the event arrives each 10 seconds our user will have a blank screen until the next event arrives. In our example we’re going to take into account this situation. Each time our user connects to the Websocket it will ask to the server for the initial state.

Our initial state route will return the current time (using Redis). We can authorize our route using the standard Django’s protected routes

from django.contrib.auth.decorators import login_required
from django.http import JsonResponse
from ws.redis import redis

@login_required
def initial_state(request):
    return JsonResponse({'current': redis.get('time')})

We need to configure our channels and define a our event:

from django.urls import re_path

from ws import consumers

websocket_urlpatterns = [
    re_path(r'time/tic/$', consumers.WsConsumer),
]

As we can see here we can reuse the authentication middleware in channel’s consumers also.

import json
import json
from channels.generic.websocket import AsyncWebsocketConsumer


class WsConsumer(AsyncWebsocketConsumer):
    GROUP = 'time'

    async def connect(self):
        if self.scope["user"].is_anonymous:
            await self.close()
        else:
            await self.channel_layer.group_add(
                self.GROUP,
                self.channel_name
            )
            await self.accept()

    async def tic_message(self, event):
        if not self.scope["user"].is_anonymous:
            message = event['message']

            await self.send(text_data=json.dumps({
                'message': message
            }))

We’re going to need a worker that each second triggers the current time (to avoid problems we’re going to trigger our event each 0.5 seconds). To perform those kind of actions Django has a great tool called Celery. We can create workers and scheduled task with Celery (exactly what we need in our example). To avoid the “initial state” situation our worker will persists the initial state into a Redis storage

app = Celery('config')
app.config_from_object('django.conf:settings', namespace='CELERY')
app.autodiscover_tasks()


@app.on_after_configure.connect
def setup_periodic_tasks(sender, **kwargs):
   sender.add_periodic_task(0.5, ws_beat.s(), name='beat every 0.5 seconds')


@app.task
def ws_beat(group=WsConsumer.GROUP, event='tic_message'):
   current_time = time.strftime('%X')
   redis.set('time', current_time)
   message = {'time': current_time}
   channel_layer = channels.layers.get_channel_layer()
   async_to_sync(channel_layer.group_send)(group, {'type': event, 'message': message})

Finally we need a javascript client to consume our Websockets

let getWsUri = () => {
  return window.location.protocol === "https:" ? "wss" : "ws" +
    '://' + window.location.host +
    "/time/tic/"
}

let render = value => {
  document.querySelector('#display').innerHTML = value
}

let ws = new ReconnectingWebSocket(getWsUri())

ws.onmessage = e => {
  const data = JSON.parse(e.data);
  render(data.message.time)
}

ws.onopen = async () => {
  let response = await axios.get("/api/initial_state")
  render(response.data.current)
}

Basically that’s the source code (plus Django the stuff).

Application architecture
The architecture of the application is the following one:

Frontend
The Django application. We can run this application in development with
python manage.py runserver

And in production using a asgi server (uvicorn in this case)

uvicorn config.asgi:application --port 8000 --host 0.0.0.0 --workers 1

In development mode:

celery -A ws worker -l debug

And in production

celery -A ws worker --uid=nobody --gid=nogroup

We need this scheduler to emit our event (each 0.5 seconds)

celery -A ws beat

Message Server for Celery
In this case we’re going to use Redis

Docker
With this application we can use the same dockerfile for frontend, worker and scheduler using different entrypoints

Dockerfile:

FROM python:3.8

ENV TZ 'Europe/Madrid'
RUN echo $TZ > /etc/timezone && \
apt-get update && apt-get install -y tzdata && \
rm /etc/localtime && \
ln -snf /usr/share/zoneinfo/$TZ /etc/localtime && \
dpkg-reconfigure -f noninteractive tzdata && \
apt-get clean

ENV PYTHONDONTWRITEBYTECODE 1
ENV PYTHONUNBUFFERED 1

ADD . /src
WORKDIR /src

RUN pip install -r requirements.txt

RUN mkdir -p /var/run/celery /var/log/celery
RUN chown -R nobody:nogroup /var/run/celery /var/log/celery

And our whole application within a docker-compose file

version: '3.4'

services:
  redis:
    image: redis
  web:
    image: clock:latest
    command: /bin/bash ./docker-entrypoint.sh
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:8000/health"]
      interval: 1m30s
      timeout: 10s
      retries: 3
      start_period: 40s
    depends_on:
      - "redis"
    ports:
      - 8000:8000
    environment:
      ENVIRONMENT: prod
      REDIS_HOST: redis
  celery:
    image: clock:latest
    command: celery -A ws worker --uid=nobody --gid=nogroup
    depends_on:
      - "redis"
    environment:
      ENVIRONMENT: prod
      REDIS_HOST: redis
  cron:
    image: clock:latest
    command: celery -A ws beat
    depends_on:
      - "redis"
    environment:
      ENVIRONMENT: prod
      REDIS_HOST: redis

If we want to deploy our application in a K8s cluster we need to migrate our docker-compose file into a k8s yaml files. I assume that we’ve deployed our docker containers into a container registry (such as ECR)

Frontend:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: clock-web-api
spec:
  replicas: 1
  selector:
    matchLabels:
      app: clock-web-api
      project: clock
  template:
    metadata:
      labels:
        app: clock-web-api
        project: clock
    spec:
      containers:
        - name: web-api
          image: my-ecr-path/clock:latest
          args: ["uvicorn", "config.asgi:application", "--port", "8000", "--host", "0.0.0.0", "--workers", "1"]
          ports:
            - containerPort: 8000
          env:
            - name: REDIS_HOST
              valueFrom:
                configMapKeyRef:
                  name: clock-app-config
                  key: redis.host
---
apiVersion: v1
kind: Service
metadata:
  name: clock-web-api
spec:
  type: LoadBalancer
  selector:
    app: clock-web-api
    project: clock
  ports:
    - protocol: TCP
      port: 8000 # port exposed internally in the cluster
      targetPort: 8000 # the container port to send requests to

Celery worker

apiVersion: apps/v1
kind: Deployment
metadata:
  name: clock-web-api
spec:
  replicas: 1
  selector:
    matchLabels:
      app: clock-web-api
      project: clock
  template:
    metadata:
      labels:
        app: clock-web-api
        project: clock
    spec:
      containers:
        - name: web-api
          image: my-ecr-path/clock:latest
          args: ["uvicorn", "config.asgi:application", "--port", "8000", "--host", "0.0.0.0", "--workers", "1"]
          ports:
            - containerPort: 8000
          env:
            - name: REDIS_HOST
              valueFrom:
                configMapKeyRef:
                  name: clock-app-config
                  key: redis.host
---
apiVersion: v1
kind: Service
metadata:
  name: clock-web-api
spec:
  type: LoadBalancer
  selector:
    app: clock-web-api
    project: clock
  ports:
    - protocol: TCP
      port: 8000 # port exposed internally in the cluster
      targetPort: 8000 # the container port to send requests to

Celery scheduler

apiVersion: apps/v1
kind: Deployment
metadata:
  name: clock-cron
spec:
  replicas: 1
  selector:
    matchLabels:
      app: clock-cron
      project: clock
  template:
    metadata:
      labels:
        app: clock-cron
        project: clock
    spec:
      containers:
        - name: clock-cron
          image: my-ecr-path/clock:latest
          args: ["celery", "-A", "ws", "beat"]
          env:
            - name: REDIS_HOST
              valueFrom:
                configMapKeyRef:
                  name: clock-app-config
                  key: redis.host

Redis

apiVersion: apps/v1
kind: Deployment
metadata:
  name: clock-redis
spec:
  replicas: 1
  selector:
    matchLabels:
      app: clock-redis
      project: clock
  template:
    metadata:
      labels:
        app: clock-redis
        project: clock
    spec:
      containers:
        - name: clock-redis
          image: redis
          ports:
            - containerPort: 6379
              name: clock-redis
---
apiVersion: v1
kind: Service
metadata:
  name: clock-redis
spec:
  type: ClusterIP
  ports:
    - port: 6379
      targetPort: 6379
  selector:
    app: clock-redis

Shared configuration

apiVersion: v1
kind: ConfigMap
metadata:
  name: clock-app-config
data:
  redis.host: "clock-redis"

We can deploy or application to our k8s cluster

kubectl apply -f .k8s/

And see it running inside the cluster locally with a port forward

kubectl port-forward deployment/clock-web-api 8000:8000

And that’s all. Our Django application with Websockets using Django Channels up and running with docker and also using k8s.

Source code in my github

Working with SAPUI5 locally (part 3). Adding more services in Docker

In the previous project we moved one project to docker. The idea was to move exactly the same functionality (even without touching anything within the source code). Now we’re going to add more services. Yes, I know, it looks like overenginering (it’s exactly overenginering, indeed), but I want to build something with different services working together. Let start.

We’re going to change a little bit our original project. Now our frontend will only have one button. This button will increment the number of clicks but we’re going to persists this information in a PostgreSQL database. Also, instead of incrementing the counter in the backend, our backend will emit one event to a RabbitMQ message broker. We’ll have one worker service listening to this event and this worker will persist the information. The communication between the worker and the frontend (to show the incremented value), will be via websockets.

With those premises we are going to need:

  • Frontend: UI5 application
  • Backend: PHP/lumen application
  • Worker: nodejs application which is listening to a RabbitMQ event and serving the websocket server (using socket.io)
  • Nginx server
  • PosgreSQL database.
  • RabbitMQ message broker.

As the previous examples, our PHP backend will be server via Nginx and PHP-FPM.

Here we can see to docker-compose file to set up all the services

version: '3.4'

services:
  nginx:
    image: gonzalo123.nginx
    restart: always
    ports:
    - "8080:80"
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-nginx
    volumes:
    - ./src/backend:/code/src
    - ./src/.docker/web/site.conf:/etc/nginx/conf.d/default.conf
    networks:
    - app-network
  api:
    image: gonzalo123.api
    restart: always
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-lumen-dev
    environment:
      XDEBUG_CONFIG: remote_host=${MY_IP}
    volumes:
    - ./src/backend:/code/src
    networks:
    - app-network
  ui5:
    image: gonzalo123.ui5
    ports:
    - "8000:8000"
    restart: always
    volumes:
    - ./src/frontend:/code/src
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-ui5
    networks:
    - app-network
  io:
    image: gonzalo123.io
    ports:
    - "9999:9999"
    restart: always
    volumes:
    - ./src/io:/code/src
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-io
    networks:
    - app-network
  pg:
    image: gonzalo123.pg
    restart: always
    ports:
    - "5432:5432"
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-pg
    environment:
      POSTGRES_PASSWORD: ${POSTGRES_PASSWORD}
      POSTGRES_USER: ${POSTGRES_USER}
      POSTGRES_DB: ${POSTGRES_DB}
      PGDATA: /var/lib/postgresql/data/pgdata
    networks:
    - app-network
  rabbit:
    image: rabbitmq:3-management
    container_name: gonzalo123.rabbit
    restart: always
    ports:
    - "15672:15672"
    - "5672:5672"
    environment:
      RABBITMQ_ERLANG_COOKIE:
      RABBITMQ_DEFAULT_VHOST: /
      RABBITMQ_DEFAULT_USER: ${RABBITMQ_DEFAULT_USER}
      RABBITMQ_DEFAULT_PASS: ${RABBITMQ_DEFAULT_PASS}
    networks:
    - app-network
networks:
  app-network:
    driver: bridge

We’re going to use the same docker files than in the previous post but we also need new ones for worker, database server and message queue:

Worker:

FROM node:alpine

EXPOSE 8000

WORKDIR /code/src
COPY ./io .
RUN npm install
ENTRYPOINT ["npm", "run", "serve"]

The worker script is simple script that serves the socket.io server and emits a websocket within every message to the RabbitMQ queue.

var amqp = require('amqp'),
  httpServer = require('http').createServer(),
  io = require('socket.io')(httpServer, {
    origins: '*:*',
  }),
  pg = require('pg')
;

require('dotenv').config();
var pgClient = new pg.Client(process.env.DB_DSN);

rabbitMq = amqp.createConnection({
  host: process.env.RABBIT_HOST,
  port: process.env.RABBIT_PORT,
  login: process.env.RABBIT_USER,
  password: process.env.RABBIT_PASS,
});

var sql = 'SELECT clickCount FROM docker.clicks';

// Please don't do this. Use lazy connections
// I'm 'lazy' to do it in this POC 🙂
pgClient.connect(function(err) {
  io.on('connection', function() {
    pgClient.query(sql, function(err, result) {
      var count = result.rows[0]['clickcount'];
      io.emit('click', {count: count});
    });

  });

  rabbitMq.on('ready', function() {
    var queue = rabbitMq.queue('ui5');
    queue.bind('#');

    queue.subscribe(function(message) {
      pgClient.query(sql, function(err, result) {
        var count = parseInt(result.rows[0]['clickcount']);
        count = count + parseInt(message.data.toString('utf8'));
        pgClient.query('UPDATE docker.clicks SET clickCount = $1', [count],
          function(err) {
            io.emit('click', {count: count});
          });
      });
    });
  });
});

httpServer.listen(process.env.IO_PORT);

Database server:

FROM postgres:9.6-alpine
COPY pg/init.sql /docker-entrypoint-initdb.d/

As we can see we’re going to generate the database estructure in the first build

CREATE SCHEMA docker;

CREATE TABLE docker.clicks (
clickCount numeric(8) NOT NULL
);

ALTER TABLE docker.clicks
OWNER TO username;

INSERT INTO docker.clicks(clickCount) values (0);

With the RabbitMQ server we’re going to use the official docker image so we don’t need to create one Dockerfile

We also have changed a little bit our Nginx configuration. We want to use Nginx to serve backend and also socket.io server. That’s because we don’t want to expose different ports to internet.

server {
    listen 80;
    index index.php index.html;
    server_name localhost;
    error_log  /var/log/nginx/error.log;
    access_log /var/log/nginx/access.log;
    root /code/src/www;

    location /socket.io/ {
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_pass "http://io:9999";
    }

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location ~ \.php$ {
        try_files $uri =404;
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        fastcgi_pass api:9000;
        fastcgi_index index.php;
        include fastcgi_params;
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        fastcgi_param PATH_INFO $fastcgi_path_info;
    }
}

To avoid CORS issues we can also use SCP destination (the localneo proxy in this example), to serve socket.io also. So we need to:

  • change our neo-app.json file
  • "routes": [
        ...
        {
          "path": "/socket.io",
          "target": {
            "type": "destination",
            "name": "SOCKETIO"
          },
          "description": "SOCKETIO"
        }
      ],


    And basically that’s all. Here also we can use a “production” docker-copose file without exposing all ports and mapping the filesystem to our local machine (useful when we’re developing)

    version: '3.4'

    services:
      nginx:
        image: gonzalo123.nginx
        restart: always
        build:
          context: ./src
          dockerfile: .docker/Dockerfile-nginx
        networks:
        - app-network
      api:
        image: gonzalo123.api
        restart: always
        build:
          context: ./src
          dockerfile: .docker/Dockerfile-lumen
        networks:
        - app-network
      ui5:
        image: gonzalo123.ui5
        ports:
        - "80:8000"
        restart: always
        volumes:
        - ./src/frontend:/code/src
        build:
          context: ./src
          dockerfile: .docker/Dockerfile-ui5
        networks:
        - app-network
      io:
        image: gonzalo123.io
        restart: always
        build:
          context: ./src
          dockerfile: .docker/Dockerfile-io
        networks:
        - app-network
      pg:
        image: gonzalo123.pg
        restart: always
        build:
          context: ./src
          dockerfile: .docker/Dockerfile-pg
        environment:
          POSTGRES_PASSWORD: ${POSTGRES_PASSWORD}
          POSTGRES_USER: ${POSTGRES_USER}
          POSTGRES_DB: ${POSTGRES_DB}
          PGDATA: /var/lib/postgresql/data/pgdata
        networks:
        - app-network
      rabbit:
        image: rabbitmq:3-management
        restart: always
        environment:
          RABBITMQ_ERLANG_COOKIE:
          RABBITMQ_DEFAULT_VHOST: /
          RABBITMQ_DEFAULT_USER: ${RABBITMQ_DEFAULT_USER}
          RABBITMQ_DEFAULT_PASS: ${RABBITMQ_DEFAULT_PASS}
        networks:
        - app-network
    networks:
      app-network:
        driver: bridge


    And that’s all. The full project is available in my github account

    Real Time IoT in the cloud with SAP’s SCP, Cloud Foundry and WebSockets

    Nowadays I’m involved with a cloud project based on SAP Cloud Platform (SCP). Side projects are the best way to mastering new technologies (at least for me) so I want to build something with SCP and my Arduino stuff. SCP comes whit one IoT module. In fact every cloud platforms have, in one way or another, one IoT module (Amazon, Azure, …). With SCP the IoT module it’s just a Hana Database where we can push our IoT values and we’re able to retrieve information via oData (the common way in SAP world).

    It’s pretty straightforward to configure the IoT module with the SAP Cloud Platform Cockpit (Every thing can be done with a hana trial account).

    NodeMcu

    First I’m going to use a simple circuit with my NodeMcu connected to my wifi network. The prototype is a potentiometer connected to the analog input. I normally use this this circuit because I can change the value just changing the potentiometer wheel. I know it’s not very usefull, but we can easily change it and use a sensor (temperature, humidity, light, …)

    It will send the percentage (from 0 to 100) of the position of the potentiometer directly to the cloud.

    #include <ESP8266WiFi.h>

    const int potentiometerPin = 0;

    // Wifi configuration
    const char* ssid = "my-wifi-ssid";
    const char* password = "my-wifi-password";

    // SAP SCP specific configuration
    const char* host = "mytenant.hanatrial.ondemand.com";
    String device_id = "my-device-ide";
    String message_type_id = "my-device-type-id";
    String oauth_token = "my-oauth-token";

    String url = "https://[mytenant].hanatrial.ondemand.com/com.sap.iotservices.mms/v1/api/http/data/" + device_id;

    const int httpsPort = 443;

    WiFiClientSecure clientTLS;

    void wifiConnect() {
      Serial.println();
      Serial.print("Connecting to ");
      Serial.println(ssid);

      WiFi.begin(ssid, password);

      while (WiFi.status() != WL_CONNECTED) {
        delay(500);
        Serial.print(".");
      }
      Serial.println("");
      Serial.print("WiFi connected.");
      Serial.print("IP address: ");
      Serial.println(WiFi.localIP());
    }

    void sendMessage(int value) {
      String payload = "{\"mode\":\"async\", \"messageType\":\"" + message_type_id + "\", \"messages\":[{\"value\": " + (String) value + "}]}";
      Serial.print("connecting to ");
      Serial.println(host);
      if (!clientTLS.connect(host, httpsPort)) {
        Serial.println("connection failed");
        return;
      }

      Serial.print("requesting payload: ");
      Serial.println(url);

      clientTLS.print(String("POST ") + url + " HTTP/1.0\r\n" +
                   "Host: " + host + "\r\n" +
                   "Content-Type: application/json;charset=utf-8\r\n" +
                   "Authorization: Bearer " + oauth_token + "\r\n" +
                   "Content-Length: " + payload.length() + "\r\n\r\n" +
                   payload + "\r\n\r\n");

      Serial.println("request sent");

      Serial.println("reply was:");
      while (clientTLS.connected()) {
        String line = clientTLS.readStringUntil('\n');
        Serial.println(line);
      }
    }

    void setup() {
      Serial.begin(9600);
      wifiConnect();

      delay(10);
    }

    int mem;
    void loop() {

      int value = ((analogRead(potentiometerPin) * 100) / 1010);
      if (value < (mem - 1) or value > (mem + 1)) {
        sendMessage(value);
        Serial.println(value);
        mem = value;
      }

      delay(200);
    }


    SCP

    SAP Cloud Platform allows us to create web applications using SAPUI5 framework easily. It also allows us to create a destination (the way that SAP’s cloud uses to connect different modules) to our IoT module. Also every Hana table can be accessed via oData so and we can retrieve the information easily within SAPIUI5.

    onAfterRendering: function () {
        var model = this.model;

        this.getView().getModel().read("/my-hana-table-odata-uri", {
            urlParameters: {
                $top: 1,
                $orderby: "G_CREATED desc"
            },
            success: function (oData) {
                model.setProperty("/value", oData.results[0].C_VALUE);
            }
        });
    }


    and display in a view

    <mvc:View controllerName="gonzalo123.iot.controller.Main" xmlns:html="http://www.w3.org/1999/xhtml" xmlns:mvc="sap.ui.core.mvc"
              displayBlock="true" xmlns="sap.m">
        <App>
            <pages>
                <Page title="{i18n>title}">
                    <content>
                        <GenericTile class="sapUiTinyMarginBegin sapUiTinyMarginTop tileLayout" header="nodemcu" frameType="OneByOne">
                            <tileContent>
                                <TileContent unit="%">
                                    <content>
                                        <NumericContent value="{view>/value}" icon="sap-icon://line-charts"/>
                                    </content>
                                </TileContent>
                            </tileContent>
                        </GenericTile>
                    </content>
                </Page>
            </pages>
        </App>
    </mvc:View>


    Cloud Foundry

    The web application (with SCP and SAPUI5) can access to IoT values via oData. We can fetch data again and again, but that’s not cool. We want real time updates in the web application. So we need WebSockets. SCP IoT module allows us to use WebSockets to put information, but not get updates (afaik. Let me know if I’m wrong). We also can connect our IoT to an existing MQTT server, but in this prototype I only want to use websockets. So we’re going to create a simple WebSocket server with node and socket.io. This server will be listening to devices updates (again and again with a setInterval function via oData) and when it detects a change it will emit a broadcast to the WebSocket.

    SAP’s SCP also allows us to create services with Cloud Foundry. So we’ll create our nodejs server there.

    var http = require('http'),
        io = require('socket.io'),
        request = require('request'),
        auth = "Basic " + new Buffer(process.env.USER + ":" + process.env.PASS).toString("base64"),
        url = process.env.IOT_ODATA,
        INTERVAL = process.env.INTERVAL,
        socket,
        value;

    server = http.createServer();
    server.listen(process.env.PORT || 3000);

    socket = io.listen(server);

    setInterval(function () {
        request.get({
            url: url,
            headers: {
                "Authorization": auth,
                "Accept": "application/json"
            }
        }, function (error, response, body) {
            var newValue = JSON.parse(body).d.results[0].C_VALUE;
            if (value !== newValue) {
                value = newValue;
                socket.sockets.emit('value', value);
            }
        });
    }, INTERVAL);


    And that’s all. My NodeMcu device connected to the cloud.

    Full project available in my github

    Playing with Docker, Silex, Python, Node and WebSockets

    I’m learning Docker. In this post I want to share a little experiment that I have done. I know the code looks like over-engineering but it’s just an excuse to build something with docker and containers. Let me explain it a little bit.

    The idea is build a Time clock in the browser. Something like this:

    Clock

    Yes I know. We can do it only with js, css and html but we want to hack a little bit more. The idea is to create:

    • A Silex/PHP frontend
    • A WebSocket server with socket.io/node
    • A Python script to obtain the current time

    WebSocket server will open 2 ports: One port to serve webSockets (socket.io) and another one as a http server (express). Python script will get the current time and it’ll send it to the webSocket server. Finally one frontend(silex) will be listening to WebSocket’s event and it will render the current time.

    That’s the WebSocket server (with socket.io and express)

    var
        express = require('express'),
        expressApp = express(),
        server = require('http').Server(expressApp),
        io = require('socket.io')(server, {origins: 'localhost:*'})
        ;

    expressApp.get('/tic', function (req, res) {
        io.sockets.emit('time', req.query.time);
        res.json('OK');
    });

    expressApp.listen(6400, '0.0.0.0');

    server.listen(8080);


    That’s our Python script

    from time import gmtime, strftime, sleep
    import httplib2

    h = httplib2.Http()
    while True:
        (resp, content) = h.request("http://node:6400/tic?time=" + strftime("%H:%M:%S", gmtime()))
        sleep(1)


    And our Silex frontend

    use Silex\Application;
    use Silex\Provider\TwigServiceProvider;

    $app = new Application(['debug' => true]);
    $app->register(new TwigServiceProvider(), [
        'twig.path' => __DIR__ . '/../views',
    ]);

    $app->get("/", function (Application $app) {
        return $app['twig']->render('index.twig', []);
    });

    $app->run();


    using this twig template

    <!DOCTYPE html>
    <html lang="en">
    <head>
        <meta charset="utf-8">
        <meta http-equiv="X-UA-Compatible" content="IE=edge">
        <meta name="viewport" content="width=device-width, initial-scale=1">
        <title>Docker example</title>
        <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" integrity="sha384-BVYiiSIFeK1dGmJRAkycuHAHRg32OmUcww7on3RYdg4Va+PmSTsz/K68vbdEjh4u" crossorigin="anonymous">
        <link href="css/app.css" rel="stylesheet">
        <script src="https://oss.maxcdn.com/html5shiv/3.7.3/html5shiv.min.js"></script>
        <script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
    </head>
    <body>
    <div class="site-wrapper">
        <div class="site-wrapper-inner">
            <div class="cover-container">
                <div class="inner cover">
                    <h1 class="cover-heading">
                        <div id="display">
                            display
                        </div>
                    </h1>
                </div>
            </div>
        </div>
    </div>
    <script src="//localhost:8080/socket.io/socket.io.js"></script>
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.12.4/jquery.min.js"></script>
    <script>
    var socket = io.connect('//localhost:8080');

    $(function () {
        socket.on('time', function (data) {
            $('#display').html(data);
        });
    });
    </script>
    </body>
    </html>


    The idea is to use one Docker container for each process. I like to have all the code in one place so all containers will share the same volume with source code.

    First the node container (WebSocket server)

    FROM node:argon

    RUN mkdir -p /mnt/src
    WORKDIR /mnt/src/node

    EXPOSE 8080 6400


    Now the python container

    FROM python:2

    RUN pip install httplib2

    RUN mkdir -p /mnt/src
    WORKDIR /mnt/src/python


    And finally Frontend contailer (apache2 with Ubuntu 16.04)

    FROM ubuntu:16.04

    RUN locale-gen es_ES.UTF-8
    RUN update-locale LANG=es_ES.UTF-8
    ENV DEBIAN_FRONTEND=noninteractive

    RUN apt-get update -y
    RUN apt-get install --no-install-recommends -y apache2 php libapache2-mod-php
    RUN apt-get clean -y

    COPY ./apache2/sites-available/000-default.conf /etc/apache2/sites-available/000-default.conf

    RUN mkdir -p /mnt/src

    RUN a2enmod rewrite
    RUN a2enmod proxy
    RUN a2enmod mpm_prefork

    RUN chown -R www-data:www-data /mnt/src
    ENV APACHE_RUN_USER www-data
    ENV APACHE_RUN_GROUP www-data
    ENV APACHE_LOG_DIR /var/log/apache2
    ENV APACHE_LOCK_DIR /var/lock/apache2
    ENV APACHE_PID_FILE /var/run/apache2/apache2.pid
    ENV APACHE_SERVERADMIN admin@localhost
    ENV APACHE_SERVERNAME localhost

    EXPOSE 80


    Now we’ve got the three containers but we want to use all together. We’ll use a docker-compose.yml file. The web container will expose port 80 and node container 8080. Node container also opens 6400 but this port is an internal port. We don’t need to access to this port outside. Only Python container needs to access to this port. Because of that 6400 is not mapped to any port in docker-compose

    version: '2'

    services:
      web:
        image: gonzalo123/example_web
        container_name: example_web
        ports:
         - "80:80"
        restart: always
        depends_on:
          - node
        build:
          context: ./images/php
          dockerfile: Dockerfile
        entrypoint:
          - /usr/sbin/apache2
          - -D
          - FOREGROUND
        volumes:
         - ./src:/mnt/src

      node:
        image: gonzalo123/example_node
        container_name: example_node
        ports:
         - "8080:8080"
        restart: always
        build:
          context: ./images/node
          dockerfile: Dockerfile
        entrypoint:
          - npm
          - start
        volumes:
         - ./src:/mnt/src

      python:
          image: gonzalo123/example_python
          container_name: example_python
          restart: always
          depends_on:
            - node
          build:
            context: ./images/python
            dockerfile: Dockerfile
          entrypoint:
            - python
            - tic.py
          volumes:
           - ./src:/mnt/src


    And that’s all. We only need to start our containers

    docker-compose up --build -d


    and open our browser at: http://localhost to see our Time clock

    Full source code available within my github account

    Playing with arduino, IoT, crossbar and websockets

    Yes. Finally I’ve got an arduino board. It’s time to hack a little bit. Today I want to try different things. I want to display in a webpage one value from my arduino board. For example one analog data using a potentiometer. Let’s start.

    We are going to use one potentiometer. A potentiometer is a resistor with a rotating contact that forms an adjustable voltage divider. It has three pins. If we connect one pin to 5V power source of our arduino, another one to the ground and another to one A0 (analog input 0), we can read different values depending on the position of potentiometer’s rotating contact.

    arduino_analog

    Arduino has 10 bit analog resolution. That means 1024 possible values, from 0 to 1023. So when our potentiometer gives us 5 volts we’ll obtain 1024 and when our it gives us 0V we’ll read 0. Here we can see a simple arduino program to read this analog input and send data via serial port:

    int mem;

    void setup() {
      Serial.begin(9600);
    }

    void loop() {
      int value = analogRead(A0);
      if (value != mem) {
        Serial.println(value);
      }
      mem = value;

      delay(100);
    }


    This program is simple loop with a delay of 100 milliseconds that reads A0 and if value is different than previously read (to avoid sending the same value when nobody is touching the potentiometer) we send the value via serial port (with 9600 bauds)

    We can test our program using the serial monitor of our arduino IDE our using another serial monitor.

    Now we’re going to create one script to read this serial port data. We’re going to use Python. I’ll use my laptop and my serial port is /dev/tty.usbmodem14231

    import serial

    arduino = serial.Serial('/dev/tty.usbmodem14231', 9600)

    while 1:
      print arduino.readline().strip()


    Basically we’ve got our backend running. Now we can create a simple frontend.

    ...
    <div id='display'></div>
    ...


    We’ll need websockets. I normally use socket.io but today I’ll use Crossbar.io. Since I hear about it in a Ronny’s talk at deSymfony conference I wanted to use it.

    I’ll change a little bit our backend to emit one event

    import serial
    from os import environ
    from twisted.internet.defer import inlineCallbacks
    from twisted.internet.task import LoopingCall
    from autobahn.twisted.wamp import ApplicationSession, ApplicationRunner

    arduino = serial.Serial('/dev/tty.usbmodem14231', 9600)

    class SeriaReader(ApplicationSession):
        @inlineCallbacks
        def onJoin(self, details):
            def publish():
                return self.publish(u'iot.serial.reader', arduino.readline().strip())

            yield LoopingCall(publish).start(0.1)

    if __name__ == '__main__':
        runner = ApplicationRunner(environ.get("GONZALO_ROUTER", u"ws://127.0.0.1:8080/ws"), u"iot")
        runner.run(SeriaReader)


    Now I only need to create a crossbar.io server. I will use node to do it

    var autobahn = require('autobahn'),
        connection = new autobahn.Connection({
                url: 'ws://0.0.0.0:8080/ws',
                realm: 'iot'
            }
        );

    connection.open();


    And now we only need to connect our frontend to the websocket server

    $(function () {
        var connection = new autobahn.Connection({
            url: "ws://192.168.1.104:8080/ws",
            realm: "iot"
        });

        connection.onopen = function (session) {
            session.subscribe('iot.serial.reader', function (args) {
                $('#display').html(args[0]);
            });
        };

        connection.open();
    });


    It works but thre’s a problem. The first time we connect with our browser we won’t see the display value until we change the position of the potentiometer. That’s because ‘iot.serial.reader’ event is only emitted when potentiometer changes. No change means no new value. To solve this problem we only need to change a little bit our crossbar.io server. We’ll “memorize” the last value and we’ll expose one method ‘iot.serial.get’ to ask about this value

    var autobahn = require('autobahn'),
        connection = new autobahn.Connection({
                url: 'ws://0.0.0.0:8080/ws',
                realm: 'iot'
            }
        ),
        mem;

    connection.onopen = function (session) {
        session.register('iot.serial.get', function () {
            return mem;
        });

        session.subscribe('iot.serial.reader', function (args) {
            mem = args[0];
        });
    };

    connection.open();


    An now in the frontend we ask for ‘iot.serial.get’ when we connect to the socket

    $(function () {
        var connection = new autobahn.Connection({
            url: "ws://192.168.1.104:8080/ws",
            realm: "iot"
        });

        connection.onopen = function (session) {
            session.subscribe('iot.serial.reader', function (args) {
                $('#display').html(args[0]);
            }).then(function () {
                    session.call('iot.serial.get').then(
                        function (result) {
                            $('#display').htmlresult);
                        }
                    );
                }
            );
        };
        connection.open();
    });


    And thats all. The source code is available in my github account. You also can see a demo of the working prototype here

    Encrypt Websocket (socket.io) communications

    I’m a big fan of WebSockets and socket.io. I’ve written a lot of about it. In last posts I’ve written about socket.io and authentication. Today we’re going to speak about communications.

    Imagine we’ve got a websocket server and we connect our application to this server (even using https/wss). If we open our browser’s console we can inspect our WebSocket communications. We also can enable debugging. This works in a similar way than when we start the promiscuous mode within our network interface. We will see every packets. Not only the packets that server is sending to us.

    If we send send sensitive information over websockets, that means than one logged user can see another ones information. We can separate namespaces in our socket.io server. We also can do another thing: Encrypt communications using crypto-js.

    I’ve created one small wrapper to use it with socket.io.
    We can install our server dependency

    npm g-crypt


    And install our client dependency with bower

    bower install g-crypt


    And use it in our server

    var io = require('socket.io')(3000),
        Crypt = require("g-crypt"),
        passphrase = 'super-secret-passphrase',
        crypter = Crypt(passphrase);

    io.on('connection', function (socket) {
        socket.on('counter', function (data) {
            var decriptedData = crypter.decrypt(data);
            setTimeout(function () {
                console.log("counter status: " + decriptedData.id);
                decriptedData.id++;
                socket.emit('counter', crypter.encrypt(decriptedData));
            }, 1000);
        });
    });


    And now a simple HTTP application

    <!DOCTYPE html>
    <html lang="en">
    <head>
        <meta charset="UTF-8">
        <title>Title</title>
    </head>
    <body>
    Open console to see the messages

    <script src="http://localhost:3000/socket.io/socket.io.js"></script>
    <script src="assets/cryptojslib/rollups/aes.js"></script>
    <script src="assets/g-crypt/src/Crypt.js"></script>
    <script>
        var socket = io('http://localhost:3000/'),
            passphrase = 'super-secret-passphrase',
            crypter = Crypt(passphrase),
            id = 0;

        socket.on('connect', function () {
            console.log("connected! Let's start the counter with: " + id);
            socket.emit('counter', crypter.encrypt({id: id}));
        });

        socket.on('counter', function (data) {
            var decriptedData = crypter.decrypt(data);
            console.log("counter status: " + decriptedData.id);
            socket.emit('counter', crypter.encrypt({id: decriptedData.id}));
        });
    </script>

    </body>
    </html>


    Now our communications are encrypted and logged user cannot read another ones data.

    Library is a simple wrapper

    Crypt = function (passphrase) {
        "use strict";
        var pass = passphrase;
        var CryptoJSAesJson = {
            parse: function (jsonStr) {
                var j = JSON.parse(jsonStr);
                var cipherParams = CryptoJS.lib.CipherParams.create({ciphertext: CryptoJS.enc.Base64.parse(j.ct)});
                if (j.iv) cipherParams.iv = CryptoJS.enc.Hex.parse(j.iv);
                if (j.s) cipherParams.salt = CryptoJS.enc.Hex.parse(j.s);
                return cipherParams;
            },
            stringify: function (cipherParams) {
                var j = {ct: cipherParams.ciphertext.toString(CryptoJS.enc.Base64)};
                if (cipherParams.iv) j.iv = cipherParams.iv.toString();
                if (cipherParams.salt) j.s = cipherParams.salt.toString();
                return JSON.stringify(j);
            }
        };

        return {
            decrypt: function (data) {
                return JSON.parse(CryptoJS.AES.decrypt(data, pass, {format: CryptoJSAesJson}).toString(CryptoJS.enc.Utf8));
            },
            encrypt: function (data) {
                return CryptoJS.AES.encrypt(JSON.stringify(data), pass, {format: CryptoJSAesJson}).toString();
            }
        };
    };

    if (typeof module !== 'undefined' && typeof module.exports !== 'undefined') {
        CryptoJS = require("crypto-js");
        module.exports = Crypt;
    } else {
        window.Crypt = Crypt;
    }


    Library available in my github and also we can use it using npm and bower.

    Sharing authentication between socket.io and a PHP frontend (using JSON Web Tokens)

    I’ve written a previous post about Sharing authentication between socket.io and a PHP frontend but after publish the post a colleague (hi @mariotux) told me that I can use JSON Web Tokens (jwt) to do this. I had never used jwt before so I decided to study a little bit.

    JWT are pretty straightforward. You only need to create the token and send it to the client. You don’t need to store this token within a database. Client can decode and validate it on its own. You also can use any programming language to encode and decode tokens (jwt is available in the most common ones)

    We’re going to create the same example than the previous post. Today, with jwt, we don’t need to pass the PHP session and perform a http request to validate it. We’ll only pass the token. Our nodejs server will validate by its own.

    var io = require('socket.io')(3000),
        jwt = require('jsonwebtoken'),
        secret = "my_super_secret_key";

    // middleware to perform authorization
    io.use(function (socket, next) {
        var token = socket.handshake.query.token,
            decodedToken;
        try {
            decodedToken = jwt.verify(token, secret);
            console.log("token valid for user", decodedToken.user);
            socket.connectedUser = decodedToken.user;
            next();
        } catch (err) {
            console.log(err);
            next(new Error("not valid token"));
            //socket.disconnect();
        }
    });

    io.on('connection', function (socket) {
        console.log('Connected! User: ', socket.connectedUser);
    });


    That’s the client:

    <!DOCTYPE html>
    <html lang="en">
    <head>
        <meta charset="UTF-8">
        <title>Title</title>
    </head>
    <body>
    Welcome {{ user }}!

    <script src="http://localhost:3000/socket.io/socket.io.js"></script>
    <script src="/assets/jquery/dist/jquery.js"></script>

    <script>
        var socket;
        $(function () {
            $.getJSON("/getIoConnectionToken", function (jwt) {
                socket = io('http://localhost:3000', {
                    query: 'token=' + jwt
                });

                socket.on('connect', function () {
                    console.log("connected!");
                });

                socket.on('error', function (err) {
                    console.log(err);
                });
            });
        });
    </script>

    </body>
    </html>


    And here the backend. A simple Silex server very similar than the previous post one. JWT has also several reserved claims. For example “exp” to set up an expiration timestamp. It’s very useful. We only set one value and validator will reject tokens with incorrect timestamp. In this example I’m not using expiration date. That’s means that my token will never expires. And never means never. In my first prototype I set up an small expiration date (10 seconds). That means my token is only available during 10 seconds. Sounds great. My backend generate tokens that are going to be used immediately. That’s the normal situation but, what happens if I restart the socket.io server? The client will try to reconnect again using the token but it’s expired. We’ll need to create a new jwt before reconnecting. Because of that I’ve removed expiration date in this example but remember: Without expiration date your generated tokens will be always valid (al always is a very big period of time)

    <?php
    include __DIR__ . "/../vendor/autoload.php";

    use Firebase\JWT\JWT;
    use Silex\Application;
    use Silex\Provider\SessionServiceProvider;
    use Silex\Provider\TwigServiceProvider;
    use Symfony\Component\HttpFoundation\Response;
    use Symfony\Component\HttpKernel\Exception\AccessDeniedHttpException;

    $app = new Application([
        'secret' => "my_super_secret_key",
        'debug' => true
    ]);
    $app->register(new SessionServiceProvider());
    $app->register(new TwigServiceProvider(), [
        'twig.path' => __DIR__ . '/../views',
    ]);

    $app->get('/', function (Application $app) {
        return $app['twig']->render('home.twig');
    });
    $app->get('/login', function (Application $app) {
        $username = $app['request']->server->get('PHP_AUTH_USER', false);
        $password = $app['request']->server->get('PHP_AUTH_PW');
        if ('gonzalo' === $username && 'password' === $password) {
            $app['session']->set('user', ['username' => $username]);

            return $app->redirect('/private');
        }
        $response = new Response();
        $response->headers->set('WWW-Authenticate', sprintf('Basic realm="%s"', 'site_login'));
        $response->setStatusCode(401, 'Please sign in.');

        return $response;
    });

    $app->get('/getIoConnectionToken', function (Application $app) {
        $user = $app['session']->get('user');
        if (null === $user) {
            throw new AccessDeniedHttpException('Access Denied');
        }

        $jwt = JWT::encode([
            // I can use "exp" reserved claim. It's cool. My connection token is only available
            // during a period of time. The problem is if I restart the io server. Client will
            // try to re-connect using this token and it's expired.
            //"exp"  => (new \DateTimeImmutable())->modify('+10 second')->getTimestamp(),
            "user" => $user
        ], $app['secret']);

        return $app->json($jwt);
    });

    $app->get('/private', function (Application $app) {
        $user = $app['session']->get('user');

        if (null === $user) {
            throw new AccessDeniedHttpException('Access Denied');
        }

        $userName = $user['username'];

        return $app['twig']->render('private.twig', [
            'user'  => $userName
        ]);
    });
    $app->run();


    Full project in my github.

    Book review: Socket.IO Cookbook

    Last summer I collaborated as a technical reviewer in the book “Socket.IO Cookbook” written by Tyson Cadenhead and finally I’ve got the book in my hands

    I’m a big fan of real time technologies and I’m normally Socket.io user. Because of that, when people of Packt Publishing contacted me to join to the project as technical reviewer my answer was yes. I’ve got serious problems nowadays to find time to pet projects and extra activities, but if there’re WebSockets inside I cannot resists.

    The book is correct and it’s a good starting point to event-based communication with JavaScript. I normally don’t like beginners books (even if I’m a beginner in the technology). I don’t like the books where author explains how to do one thing that I can see how to do it within the website of the. OK. This book isn’t one of those of books. The writer don’t assume reader is a totally newbie. Because of that newbies sometimes can be lost in some chapters, but this exactly the way we all learn new technologies. I like the way Tyson introduces concepts about socket.io.

    The book is focused in JavaScript and also uses JavaScript to the backend (with node). Maybe I miss the integration with non-JavaScript environments, but as socket.io is a javascript library I understand that the usage of JavaScript in all application lifecycle is a good approach.

    IMG_20151106_204902_jpg

    Also those days I was reading and playing a little bit with WebRTC and the book has one chapter about it! #cool

    Enclosing socket.io Websocket connection inside a HTML5 SharedWorker

    I really like WebSockets. I’ve written several posts about them. Today we’re going to speak about something related to WebSockets. Let me explain it a little bit.

    Imagine that we build a Web Application with WebSockets. That’s means that when we start the application, we need to connect to the WebSockets server. If our application is a Single-page application, we’ll create one socket per application, but: What happens if we open three tabs with the application within the browser? The answer is simple, we’ll create three sockets. Also, if we reload one tab (a full refresh) we’ll disconnect our socket and reconnect again. Maybe we can handle this situation, but we can easily bypass this disconnect-connect situation with a HTML5 feature called SharedWorkers.

    Web Workers allows us to run JavaScript process in background. We also can create Shared Workers. SharedWorkers can be shared within our browser session. That’s means that we can enclose our WebSocket server inside s SharedWorker, and if we open various tabs with our browser we only need one Socket (one socket per session instead one socket per tab).

    I’ve written a simple library called gio to perform this operation. gio uses socket.io to create WebSockets. WebWorker is a new HTML5 feature and it needs a modern browser. Socket.io works also with old browsers. It checks if WebWorkers are available and if they isn’t, then gio creates a WebSocket connection instead of using a WebWorker to enclose the WebSockets.

    We can see one simple video to see how it works. In the video we can see how sockets are created. Only one socket is created even if we open more than one tab in our browser. But if we open a new session (one incognito session for example), a new socket is created

    Here we can see the SharedWorker code:

    "use strict";

    importScripts('socket.io.js');

    var socket = io(self.name),
        ports = [];

    addEventListener('connect', function (event) {
        var port = event.ports[0];
        ports.push(port);
        port.start();

        port.addEventListener("message", function (event) {
            for (var i = 0; i < event.data.events.length; ++i) {
                var eventName = event.data.events[i];

                socket.on(event.data.events[i], function (e) {
                    port.postMessage({type: eventName, message: e});
                });
            }
        });
    });

    socket.on('connect', function () {
        for (var i = 0; i < ports.length; i++) {
            ports[i].postMessage({type: '_connect'});
        }
    });

    socket.on('disconnect', function () {
        for (var i = 0; i < ports.length; i++) {
            ports[i].postMessage({type: '_disconnect'});
        }
    });


    And here we can see the gio source code:

    var gio = function (uri, onConnect, onDisConnect) {
        "use strict";
        var worker, onError, workerUri, events = {};

        function getKeys(obj) {
            var keys = [];

            for (var i in obj) {
                if (obj.hasOwnProperty(i)) {
                    keys.push(i);
                }
            }

            return keys;
        }

        function onMessage(type, message) {
            switch (type) {
                case '_connect':
                    if (onConnect) onConnect();
                    break;
                case '_disconnect':
                    if (onDisConnect) onDisConnect();
                    break;
                default:
                    if (events[type]) events[type](message);
            }
        }

        function startWorker() {
            worker = new SharedWorker(workerUri, uri);
            worker.port.addEventListener("message", function (event) {
                onMessage(event.data.type, event.data.message);

            }, false);

            worker.onerror = function (evt) {
                if (onError) onError(evt);
            };

            worker.port.start();
            worker.port.postMessage({events: getKeys(events)});
        }

        function startSocketIo() {
            var socket = io(uri);
            socket.on('connect', function () {
                if (onConnect) onConnect();
            });

            socket.on('disconnect', function () {
                if (onDisConnect) onDisConnect();
            });

            for (var eventName in events) {
                if (events.hasOwnProperty(eventName)) {
                    socket.on(eventName, socketOnEventHandler(eventName));
                }
            }
        }

        function socketOnEventHandler(eventName) {
            return function (e) {
                onMessage(eventName, e);
            };
        }

        return {
            registerEvent: function (eventName, callback) {
                events[eventName] = callback;
            },

            start: function () {
                if (!SharedWorker) {
                    startSocketIo();
                } else {
                    startWorker();
                }
            },

            onError: function (cbk) {
                onError = cbk;
            },

            setWorker: function (uri) {
                workerUri = uri;
            }
        };
    };


    And here the application code:

    (function (gio) {
        "use strict";

        var onConnect = function () {
            console.log("connected!");
        };

        var onDisConnect = function () {
            console.log("disconnect!");
        };

        var ws = gio("http://localhost:8080", onConnect, onDisConnect);
        ws.setWorker("sharedWorker.js");

        ws.registerEvent("message", function (data) {
            console.log("message", data);
        });

        ws.onError(function (data) {
            console.log("error", data);
        });

        ws.start();
    }(gio));


    I’ve also created a simple webSocket server with socket.io. In this small server there’s a setInterval function broadcasting one message to all clients per second to see the application working

    var io, connectedSockets;

    io = require('socket.io').listen(8080);
    connectedSockets = 0;

    io.sockets.on('connection', function (socket) {
        connectedSockets++;
        console.log("Socket connected! Conected sockets:", connectedSockets);

        socket.on('disconnect', function () {
            connectedSockets--;
            console.log("Socket disconnect! Conected sockets:", connectedSockets);
        });
    });

    setInterval(function() {
        io.emit("message", "Hola " + new Date().getTime());
    }, 1000);


    Source code is available in my github account.
