Playing with Grafana and weather APIs

Today I want to play with Grafana. Let me show you my idea:

I’ve got a Beewi temperature sensor. I’ve been playing with it previously. Today I want to show the temperature within a Grafana dashboard.
I want to play also with openweathermap API.

Fist I want to retrieve the temperature from Beewi device. I’ve got a node script that connects via Bluetooth to the device using noble library.
I only need to pass the sensor mac address and I obtain a JSON with the current temperature

#!/usr/bin/env node
noble = require('noble');

var status = false;
var address = process.argv[2];

if (!address) {
    console.log('Usage "./reader.py <sensor mac address>"');
    process.exit();
}

function hexToInt(hex) {
    var num, maxVal;
    if (hex.length % 2 !== 0) {
        hex = "0" + hex;
    }
    num = parseInt(hex, 16);
    maxVal = Math.pow(2, hex.length / 2 * 8);
    if (num > maxVal / 2 - 1) {
        num = num - maxVal;
    }

    return num;
}

noble.on('stateChange', function(state) {
    status = (state === 'poweredOn');
});

noble.on('discover', function(peripheral) {
    if (peripheral.address == address) {
        var data = peripheral.advertisement.manufacturerData.toString('hex');
        out = {
            temperature: parseFloat(hexToInt(data.substr(10, 2)+data.substr(8, 2))/10).toFixed(1)
        };
        console.log(JSON.stringify(out))
        noble.stopScanning();
        process.exit();
    }
});

noble.on('scanStop', function() {
    noble.stopScanning();
});

setTimeout(function() {
    noble.stopScanning();
    noble.startScanning();
}, 2000);


setTimeout(function() {
    noble.stopScanning();
    process.exit()
}, 20000);

And finally another script (this time a Python script) to collect data from openweathermap API, collect data from node script and storing the information in a influxdb database.

from sense_hat import SenseHat
from influxdb import InfluxDBClient
import datetime
import logging
import requests
import json
from subprocess import check_output
import os
import sys
from dotenv import load_dotenv

logging.basicConfig(level=logging.INFO)

current_dir = os.path.dirname(os.path.abspath(__file__))
load_dotenv(dotenv_path="{}/.env".format(current_dir))

sensor_mac_address = os.getenv("BEEWI_SENSOR")
openweathermap_api_key = os.getenv("OPENWEATHERMAP_API_KEY")
influxdb_host = os.getenv("INFLUXDB_HOST")
influxdb_port = os.getenv("INFLUXDB_PORT")
influxdb_database = os.getenv("INFLUXDB_DATABASE")

reader = '{}/reader.js'.format(current_dir)


def get_rain_level_from_weather(weather):
    rain = False
    rain_level = 0
    if len(weather) > 0:
        for w in weather:
            if w['icon'] == '09d':
                rain = True
                rain_level = 1
            elif w['icon'] == '10d':
                rain = True
                rain_level = 2
            elif w['icon'] == '11d':
                rain = True
                rain_level = 3
            elif w['icon'] == '13d':
                rain = True
                rain_level = 4

    return rain, rain_level


def openweathermap():
    data = {}
    r = requests.get(
        "http://api.openweathermap.org/data/2.5/weather?id=3110044&appid={}&units=metric".format(
            openweathermap_api_key))

    if r.status_code == 200:
        current_data = r.json()
        data['weather'] = current_data['main']
        rain, rain_level = get_rain_level_from_weather(current_data['weather'])
        data['weather']['rain'] = rain
        data['weather']['rain_level'] = rain_level

    r2 = requests.get(
        "http://api.openweathermap.org/data/2.5/uvi?lat=43.32&lon=-1.93&appid={}".format(openweathermap_api_key))
    if r2.status_code == 200:
        data['uvi'] = r2.json()

    r3 = requests.get(
        "http://api.openweathermap.org/data/2.5/forecast?id=3110044&appid={}&units=metric".format(
            openweathermap_api_key))

    if r3.status_code == 200:
        forecast = r3.json()['list']
        data['forecast'] = []
        for f in forecast:
            rain, rain_level = get_rain_level_from_weather(f['weather'])
            data['forecast'].append({
                "dt": f['dt'],
                "fields": {
                    "temp": float(f['main']['temp']),
                    "humidity": float(f['main']['humidity']),
                    "rain": rain,
                    "rain_level": int(rain_level),
                    "pressure": float(float(f['main']['pressure']))
                }
            })

        return data


def persists(measurement, fields, location, time):
    logging.info("{} {} [{}] {}".format(time, measurement, location, fields))
    influx_client.write_points([{
        "measurement": measurement,
        "tags": {"location": location},
        "time": time,
        "fields": fields
    }])


def in_sensors():
    try:
        sense = SenseHat()
        pressure = sense.get_pressure()
        reader_output = check_output([reader, sensor_mac_address]).strip()
        sensor_info = json.loads(reader_output)
        temperature = sensor_info['temperature']

        persists(measurement='home_pressure', fields={"value": float(pressure)}, location="in", time=current_time)
        persists(measurement='home_temperature', fields={"value": float(temperature)}, location="in",
                 time=current_time)
    except Exception as err:
        logging.error(err)


def out_sensors():
    try:
        out_info = openweathermap()

        persists(measurement='home_pressure',
                 fields={"value": float(out_info['weather']['pressure'])},
                 location="out",
                 time=current_time)
        persists(measurement='home_humidity',
                 fields={"value": float(out_info['weather']['humidity'])},
                 location="out",
                 time=current_time)
        persists(measurement='home_temperature',
                 fields={"value": float(out_info['weather']['temp'])},
                 location="out",
                 time=current_time)
        persists(measurement='home_rain',
                 fields={"value": out_info['weather']['rain'], "level": out_info['weather']['rain_level']},
                 location="out",
                 time=current_time)
        persists(measurement='home_uvi',
                 fields={"value": float(out_info['uvi']['value'])},
                 location="out",
                 time=current_time)
        for f in out_info['forecast']:
            persists(measurement='home_weather_forecast',
                     fields=f['fields'],
                     location="out",
                     time=datetime.datetime.utcfromtimestamp(f['dt']).isoformat())

    except Exception as err:
        logging.error(err)


influx_client = InfluxDBClient(host=influxdb_host, port=influxdb_port, database=influxdb_database)
current_time = datetime.datetime.utcnow().isoformat()

in_sensors()
out_sensors()

I’m running this python script from a Raspberry Pi3 with a Sense Hat. Sense Hat has a atmospheric pressure sensor, so I will also retrieve the pressure from the Sense Hat.

From openweathermap I will obtain:

  • Current temperature/humidity and atmospheric pressure in the street
  • UV Index (the measure of the level of UV radiation)
  • Weather conditions (if it’s raining or not)
  • Weather forecast

I run this script with the Rasberry Pi crontab each 5 minutes. That means that I’ve got a fancy time series ready to be shown with grafana.

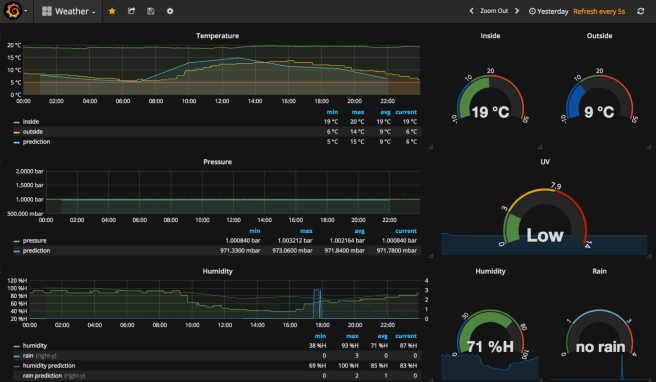

Here we can see the dashboard

Source code available in my github account.

Advertisements

Playing with Docker, MQTT, Grafana, InfluxDB, Python and Arduino

I must admit this post is just an excuse to play with Grafana and InfluxDb. InfluxDB is a cool database especially designed to work with time series. Grafana is one open source tool for time series analytics. I want to build a simple prototype. The idea is:

  • One Arduino device (esp32) emits a MQTT event to a mosquitto server. I’ll use a potentiometer to emulate one sensor (Imagine here, for example, a temperature sensor instead of potentiometer). I’ve used this circuit before in another projects
  • One Python script will be listening to the MQTT event in my Raspberry Pi and it will persist the value to InfluxDB database
  • I will monitor the state of the time series given by the potentiometer with Grafana
  • I will create one alert in Grafana (for example when the average value within 10 seconds is above a threshold) and I will trigger a webhook when the alert changes its state
  • One microservice (a Python Flask server) will be listening to the webhook and it will emit a MQTT event depending on the state
  • Another Arduino device (one NodeMcu in this case) will be listening to this MQTT event and it will activate a LED. Red one if the alert is ON and green one if the alert is OFF

The server
As I said before we’ll need three servers:

  • MQTT server (mosquitto)
  • InfluxDB server
  • Grafana server

We’ll use Docker. I’ve got a Docker host running in a Raspberry Pi3. The Raspberry Pi is a ARM device so we need docker images for this architecture.

version: '2'

services:
  mosquitto:
    image: pascaldevink/rpi-mosquitto
    container_name: moquitto
    ports:
     - "9001:9001"
     - "1883:1883"
    restart: always

  influxdb:
    image: hypriot/rpi-influxdb
    container_name: influxdb
    restart: always
    environment:
     - INFLUXDB_INIT_PWD="password"
     - PRE_CREATE_DB="iot"
    ports:
     - "8083:8083"
     - "8086:8086"
    volumes:
     - ~/docker/rpi-influxdb/data:/data

  grafana:
    image: fg2it/grafana-armhf:v4.6.3
    container_name: grafana
    restart: always
    ports:
     - "3000:3000"
    volumes:
      - grafana-db:/var/lib/grafana
      - grafana-log:/var/log/grafana
      - grafana-conf:/etc/grafana

volumes:
  grafana-db:
    driver: local
  grafana-log:
    driver: local
  grafana-conf:
    driver: local

ESP32
The Esp32 part is very simple. We only need to connect our potentiometer to the Esp32. The potentiometer has three pins: Gnd, Signal and Vcc. For signal we’ll use the pin 32.

We only need to configure our Wifi network, connect to our MQTT server and emit the potentiometer value within each loop.

#include <PubSubClient.h>
#include <WiFi.h>

const int potentiometerPin = 32;

// Wifi configuration
const char* ssid = "my_wifi_ssid";
const char* password = "my_wifi_password";

// MQTT configuration
const char* server = "192.168.1.111";
const char* topic = "/pot";
const char* clientName = "com.gonzalo123.esp32";

String payload;

WiFiClient wifiClient;
PubSubClient client(wifiClient);

void wifiConnect() {
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("WiFi connected.");
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());
}

void mqttReConnect() {
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (client.connect(clientName)) {
      Serial.println("connected");
    } else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      delay(5000);
    }
  }
}

void mqttEmit(String topic, String value)
{
  client.publish((char*) topic.c_str(), (char*) value.c_str());
}

void setup() {
  Serial.begin(115200);

  wifiConnect();
  client.setServer(server, 1883);
  delay(1500);
}

void loop() {
  if (!client.connected()) {
    mqttReConnect();
  }
  int current = (int) ((analogRead(potentiometerPin) * 100) / 4095);
  mqttEmit(topic, (String) current);
  delay(500);
}

Mqtt listener

The esp32 emits an event (“/pot”) with the value of the potentiometer. So we’re going to create a MQTT listener that listen to MQTT and persits the value to InfluxDB.

import paho.mqtt.client as mqtt
from influxdb import InfluxDBClient
import datetime
import logging


def persists(msg):
    current_time = datetime.datetime.utcnow().isoformat()
    json_body = [
        {
            "measurement": "pot",
            "tags": {},
            "time": current_time,
            "fields": {
                "value": int(msg.payload)
            }
        }
    ]
    logging.info(json_body)
    influx_client.write_points(json_body)


logging.basicConfig(level=logging.INFO)
influx_client = InfluxDBClient('docker', 8086, database='iot')
client = mqtt.Client()

client.on_connect = lambda self, mosq, obj, rc: self.subscribe("/pot")
client.on_message = lambda client, userdata, msg: persists(msg)

client.connect("docker", 1883, 60)

client.loop_forever()

Grafana
In grafana we need to do two things. First to create one datasource from our InfluxDB server. It’s pretty straightforward to it.

Finally we’ll create a dashboard. We only have one time-serie with the value of the potentiometer. I must admit that my dasboard has a lot things that I’ve created only for fun.

Thats the query that I’m using to plot the main graph

SELECT
  last("value") FROM "pot"
WHERE
  time >= now() - 5m
GROUP BY
  time($interval) fill(previous)

Here we can see the dashboard

And here my alert configuration:

I’ve also created a notification channel with a webhook. Grafana will use this web hook to notify when the state of alert changes

Webhook listener
Grafana will emit a webhook, so we’ll need an REST endpoint to collect the webhook calls. I normally use PHP/Lumen to create REST servers but in this project I’ll use Python and Flask.

We need to handle HTTP Basic Auth and emmit a MQTT event. MQTT is a very simple protocol but it has one very nice feature that fits like hat fits like a glove here. Le me explain it:

Imagine that we’ve got our system up and running and the state is “ok”. Now we connect one device (for example one big red/green lights). Since the “ok” event was fired before we connect the lights, our green light will not be switch on. We need to wait util “alert” event if we want to see any light. That’s not cool.

MQTT allows us to “retain” messages. That means that we can emit messages with “retain” flag to one topic and when we connect one device later to this topic, it will receive the message. Here it’s exactly what we need.

from flask import Flask
from flask import request
from flask_httpauth import HTTPBasicAuth
import paho.mqtt.client as mqtt
import json

client = mqtt.Client()

app = Flask(__name__)
auth = HTTPBasicAuth()

# http basic auth credentials
users = {
    "user": "password"
}


@auth.get_password
def get_pw(username):
    if username in users:
        return users.get(username)
    return None


@app.route('/alert', methods=['POST'])
@auth.login_required
def alert():
    client.connect("docker", 1883, 60)
    data = json.loads(request.data.decode('utf-8'))
    if data['state'] == 'alerting':
        client.publish(topic="/alert", payload="1", retain=True)
    elif data['state'] == 'ok':
        client.publish(topic="/alert", payload="0", retain=True)

    client.disconnect()

    return "ok"


if __name__ == "__main__":
    app.run(host='0.0.0.0')

Nodemcu

Finally the Nodemcu. This part is similar than the esp32 one. Our leds are in pins 4 and 5. We also need to configure the Wifi and connect to to MQTT server. Nodemcu and esp32 are similar devices but not the same. For example we need to use different libraries to connect to the wifi.

This device will be listening to the MQTT event and trigger on led or another depending on the state

#include <PubSubClient.h>
#include <ESP8266WiFi.h>

const int ledRed = 4;
const int ledGreen = 5;

// Wifi configuration
const char* ssid = "my_wifi_ssid";
const char* password = "my_wifi_password";

// mqtt configuration
const char* server = "192.168.1.111";
const char* topic = "/alert";
const char* clientName = "com.gonzalo123.nodemcu";

int value;
int percent;
String payload;

WiFiClient wifiClient;
PubSubClient client(wifiClient);

void wifiConnect() {
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("WiFi connected.");
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());
}

void mqttReConnect() {
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (client.connect(clientName)) {
      Serial.println("connected");
      client.subscribe(topic);
    } else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      delay(5000);
    }
  }
}

void callback(char* topic, byte* payload, unsigned int length) {

  Serial.print("Message arrived [");
  Serial.print(topic);

  String data;
  for (int i = 0; i < length; i++) {
    data += (char)payload[i];
  }
  cleanLeds();
  int value = data.toInt();
  switch (value)  {
    case 1:
      digitalWrite(ledRed, HIGH);
      break;
    case 0:
      digitalWrite(ledGreen, HIGH);
      break;
  }
  Serial.print("] value:");
  Serial.println((int) value);
}

void cleanLeds() {
  digitalWrite(ledRed, LOW);
  digitalWrite(ledGreen, LOW);
}

void setup() {
  Serial.begin(9600);
  pinMode(ledRed, OUTPUT);
  pinMode(ledGreen, OUTPUT);
  cleanLeds();
  Serial.println("start");

  wifiConnect();
  client.setServer(server, 1883);
  client.setCallback(callback);

  delay(1500);
}

void loop() {
  Serial.print(".");
  if (!client.connected()) {
    mqttReConnect();
  }

  client.loop();
  delay(500);
}

Here you can see the working prototype in action

And here the source code

Playing with Ionic, Lumen, Firebase, Google maps, Raspberry Pi and background geolocation

I wanna do a simple pet project. The idea is to build a mobile application. This application will track my GPS location and send this information to a Firebase database. I’ve never play with Firebase and I want to learn a little bit. With this information I will build a simple web application hosted in my Raspberry Pi. This web application will show a Google map with my last location. I will put this web application in my TV and anyone in my house will see where I am every time.

That’s the idea. I want a MVP. First the mobile application. I will use ionic framework. I’m big fan of ionic.

The mobile application is very simple. It only has a toggle to activate-deactivate the background geolocation (sometimes I don’t want to be tracked :).

<ion-header>
    <ion-navbar>
        <ion-title>
            Ionic Blank
        </ion-title>
    </ion-navbar>
</ion-header>

<ion-header>
    <ion-toolbar [color]="toolbarColor">
        <ion-title>{{title}}</ion-title>
        <ion-buttons end>
            <ion-toggle color="light"
                        checked="{{isBgEnabled}}"
                        (ionChange)="changeWorkingStatus($event)">
            </ion-toggle>
        </ion-buttons>
    </ion-toolbar>
</ion-header>

<ion-content padding>
</ion-content>

And the controller:

import {Component} from '@angular/core';
import {Platform} from 'ionic-angular';
import {LocationTracker} from "../../providers/location-tracker/location-tracker";

@Component({
    selector: 'page-home',
    templateUrl: 'home.html'
})
export class HomePage {
    public status: string = localStorage.getItem('status') || "-";
    public title: string = "";
    public isBgEnabled: boolean = false;
    public toolbarColor: string;

    constructor(platform: Platform,
                public locationTracker: LocationTracker) {

        platform.ready().then(() => {

                if (localStorage.getItem('isBgEnabled') === 'on') {
                    this.isBgEnabled = true;
                    this.title = "Working ...";
                    this.toolbarColor = 'secondary';
                } else {
                    this.isBgEnabled = false;
                    this.title = "Idle";
                    this.toolbarColor = 'light';
                }
        });
    }

    public changeWorkingStatus(event) {
        if (event.checked) {
            localStorage.setItem('isBgEnabled', "on");
            this.title = "Working ...";
            this.toolbarColor = 'secondary';
            this.locationTracker.startTracking();
        } else {
            localStorage.setItem('isBgEnabled', "off");
            this.title = "Idle";
            this.toolbarColor = 'light';
            this.locationTracker.stopTracking();
        }
    }
}

As you can see, the toggle button will activate-deactivate the background geolocation and it also changes de background color of the toolbar.

For background geolocation I will use one cordova plugin available as ionic native plugin

Here you can see read a very nice article explaining how to use the plugin with ionic. As the article explains I’ve created a provider

import {Injectable, NgZone} from '@angular/core';
import {BackgroundGeolocation} from '@ionic-native/background-geolocation';
import {CONF} from "../conf/conf";

@Injectable()
export class LocationTracker {
    constructor(public zone: NgZone,
                private backgroundGeolocation: BackgroundGeolocation) {
    }

    showAppSettings() {
        return this.backgroundGeolocation.showAppSettings();
    }

    startTracking() {
        this.startBackgroundGeolocation();
    }

    stopTracking() {
        this.backgroundGeolocation.stop();
    }

    private startBackgroundGeolocation() {
        this.backgroundGeolocation.configure(CONF.BG_GPS);
        this.backgroundGeolocation.start();
    }
}

The idea of the plugin is send a POST request to a url with the gps data in the body of the request. So, I will create a web api server to handle this request. I will use my Raspberry Pi3. to serve the application. I will create a simple PHP/Lumen application. This application will handle the POST request of the mobile application and also will serve a html page with the map (using google maps).

Mobile requests will be authenticated with a token in the header and web application will use a basic http authentication. Because of that I will create two middlewares to handle the the different ways to authenticate.

<?php
require __DIR__ . '/../vendor/autoload.php';

use App\Http\Middleware;
use App\Model\Gps;
use Illuminate\Contracts\Debug\ExceptionHandler;
use Illuminate\Http\Request;
use Laravel\Lumen\Application;
use Laravel\Lumen\Routing\Router;

(new Dotenv\Dotenv(__DIR__ . '/../env/'))->load();

$app = new Application(__DIR__ . '/..');
$app->singleton(ExceptionHandler::class, App\Exceptions\Handler::class);
$app->routeMiddleware([
    'auth'  => Middleware\AuthMiddleware::class,
    'basic' => Middleware\BasicAuthMiddleware::class,
]);

$app->router->group(['middleware' => 'auth', 'prefix' => '/locator'], function (Router $route) {
    $route->post('/gps', function (Gps $gps, Request $request) {
        $requestData = $request->all();
        foreach ($requestData as $poi) {
            $gps->persistsData([
                'date'             => date('YmdHis'),
                'serverTime'       => time(),
                'time'             => $poi['time'],
                'latitude'         => $poi['latitude'],
                'longitude'        => $poi['longitude'],
                'accuracy'         => $poi['accuracy'],
                'speed'            => $poi['speed'],
                'altitude'         => $poi['altitude'],
                'locationProvider' => $poi['locationProvider'],
            ]);
        }

        return 'OK';
    });
});

return $app;

As we can see the route /locator/gps will handle the post request. I’ve created a model to persists gps data in the firebase database:

<?php

namespace App\Model;

use Kreait\Firebase\Factory;
use Kreait\Firebase\ServiceAccount;

class Gps
{
    private $database;

    private const FIREBASE_CONF = __DIR__ . '/../../conf/firebase.json';

    public function __construct()
    {
        $serviceAccount = ServiceAccount::fromJsonFile(self::FIREBASE_CONF);
        $firebase       = (new Factory)
            ->withServiceAccount($serviceAccount)
            ->create();

        $this->database = $firebase->getDatabase();
    }

    public function getLast()
    {
        $value = $this->database->getReference('gps/poi')
            ->orderByKey()
            ->limitToLast(1)
            ->getValue();

        $out                 = array_values($value)[0];
        $out['formatedDate'] = \DateTimeImmutable::createFromFormat('YmdHis', $out['date'])->format('d/m/Y H:i:s');

        return $out;
    }

    public function persistsData(array $data)
    {
        return $this->database
            ->getReference('gps/poi')
            ->push($data);
    }
}

The project is almost finished. Now we only need to create the google map.

That’s the api

<?php
$app->router->group(['middleware' => 'basic', 'prefix' => '/map'], function (Router $route) {
    $route->get('/', function (Gps $gps) {
        return view("index", $gps->getLast());
    });

    $route->get('/last', function (Gps $gps) {
        return $gps->getLast();
    });
});

And the HTML

<!DOCTYPE html>
<html>
<head>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no">
    <meta charset="utf-8">
    <title>Locator</title>
    <style>
        #map {
            height: 100%;
        }

        html, body {
            height: 100%;
            margin: 0;
            padding: 0;
        }
    </style>
</head>
<body>
<div id="map"></div>
<script>

    var lastDate;
    var DELAY = 60;

    function drawMap(lat, long, text) {
        var CENTER = {lat: lat, lng: long};
        var contentString = '<div id="content">' + text + '</div>';
        var infowindow = new google.maps.InfoWindow({
            content: contentString
        });
        var map = new google.maps.Map(document.getElementById('map'), {
            zoom: 11,
            center: CENTER,
            disableDefaultUI: true
        });

        var marker = new google.maps.Marker({
            position: CENTER,
            map: map
        });
        var trafficLayer = new google.maps.TrafficLayer();

        trafficLayer.setMap(map);
        infowindow.open(map, marker);
    }

    function initMap() {
        lastDate = '{{ $formatedDate }}';
        drawMap({{ $latitude }}, {{ $longitude }}, lastDate);
    }

    setInterval(function () {
        fetch('/map/last', {credentials: "same-origin"}).then(function (response) {
            response.json().then(function (data) {
                if (lastDate !== data.formatedDate) {
                    drawMap(data.latitude, data.longitude, data.formatedDate);
                }
            });
        });
    }, DELAY * 1000);
</script>
<script async defer src="https://maps.googleapis.com/maps/api/js?key=my_google_maps_key&callback=initMap">
</script>
</body>
</html>

And that’s all just enough for a weekend. Source code is available in my github account

Playing with IoT, MQTT, Arduino and Raspberry Pi. Building a dashboard with OpenUI5

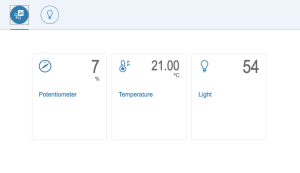

I’ve been playing with MQTT in previous posts. Today I want to build a simple dashboard. Basically because I’ve got a 3.5inch display for my Raspberry Py and I want to use it. The idea is set up my Rasperry Pi as a web kiosk and display the MQTT variables in real time using websockets. Let’s start.

Set up Raspberry Pi as a web kiosk is pretty straightforward. You only need to follow instructions detailed here. Now we will prepare the MQTT inputs. Today we’re going to reuse one example of previous post. A potentiometer controlled by a nodemcu microcontroller connected to our MQTT server via Wifi.

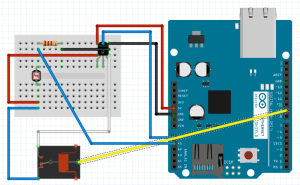

We also will build another circuit using a Arduino board and a ethernet Shield.

With this circuit we’ll register the temperature (using a LM35 temperature sensor), a photo resistor (CDS) to show the light level and a relay to switch on/off a light bulb. The Idea of the circuit is emit the temperature and light level to mosquitto mqtt server and listen to switch status form mqtt server to fire the relay. That’s the arduino code

#include <SPI.h>
#include <Ethernet.h>
#include <PubSubClient.h>

const int photocellPin = 1;
const int tempPin = 0;
const int relayPin = 9;
bool lightStatus = false;

const byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

// mqtt configuration
const char* mqttServer = "192.168.1.104";
const int mqttPort = 1883;
const String topicLightChange = "sensors/arduino/light/change";
const String topicLightStatus = "sensors/arduino/light/status";
const String topicTemp = "sensors/arduino/temperature/room1";
const String topicLight = "sensors/arduino/light/room1";
const char* clientName = "com.gonzalo123.arduino";

EthernetClient ethClient;
PubSubClient client(ethClient);

void mqttReConnect() {
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (client.connect(clientName)) {
      Serial.println("connected");
      client.subscribe(topicLightChange.c_str());
    } else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      delay(5000);
    }
  }
}

void mqttEmit(String topic, String value) {
  if (client.publish((char*) topic.c_str(), (char*) value.c_str())) {
    //Serial.print("Publish ok (topic: ");
    //Serial.print(topic);
    //Serial.print(", value: ");
    //Serial.print(value);
    //Serial.println(")");
  } else {
    Serial.println("Publish failed");
  }
}

void callback(char* topic, byte* payload, unsigned int length) {
  Serial.print("Message arrived [");
  Serial.print(topic);
  Serial.print("] payload: ");
  String data;
  for (int i = 0; i < length; i++) {
    data += (char)payload[i];
  }

  if (strcmp(topic, topicLightChange.c_str()) == 0) {
    lightStatus = (data == "1") ? true : false;
    Serial.print(data);
  }

  Serial.println("");
}

void setup()
{
  Serial.begin(9600);
  pinMode(relayPin, OUTPUT);
  digitalWrite(relayPin, LOW);

  client.setServer(mqttServer, mqttPort);
  client.setCallback(callback);
  if (Ethernet.begin(mac) == 0) {
    Serial.println("Failed to configure Ethernet using DHCP");
  }

  delay(1500);
}

void loop()
{
  if (!client.connected()) {
    mqttReConnect();
  }

  client.loop();

  if (lightStatus == 1) {
    digitalWrite(relayPin, HIGH);
  } else {
    digitalWrite(relayPin, LOW);
  }
  mqttEmit(topicLightStatus, lightStatus ? "1" : "0");
  mqttEmit(topicLight, (String) analogRead(photocellPin));
  mqttEmit(topicTemp, (String) ((5.0 * analogRead(tempPin) * 100.0) / 1024.0));

  delay(500);
}

Now we’re going to work with dashboard. This days I’m working with OpenUI5 within various projects and because of that we’ll use this library to build the dashboard. we’ll build something like this:

Basically it’s a view

<mvc:View
        controllerName="gonzalo123.controller.Controller"
        height="100%"
        width="100%"
        xmlns="sap.m"
        xmlns:mvc="sap.ui.core.mvc"
        xmlns:app="http://schemas.sap.com/sapui5/extension/sap.ui.core.CustomData/1"
>
    <IconTabBar expandable="false"
                stretchContentHeight="true"
                class="sapUiResponsiveContentPadding">
        <items>
            <IconTabFilter icon="sap-icon://bbyd-dashboard">
                <TileContainer>
                    <StandardTile
                            icon="sap-icon://explorer"
                            number="{/potentiometer}"
                            numberUnit="%"
                            title="{i18n>potentiometer}"/>
                    <StandardTile
                            icon="sap-icon://temperature"
                            number="{/temperature}"
                            numberUnit="ºC"
                            title="{i18n>temperature}"/>
                    <StandardTile
                            icon="sap-icon://lightbulb"
                            number="{/light/level}"
                            title="{i18n>light}"/>
                </TileContainer>
            </IconTabFilter>
            <IconTabFilter icon="sap-icon://lightbulb">
                <Page showHeader="false"
                      enableScrolling="true">
                    <List>
                        <InputListItem label="{i18n>light}">
                            <Switch state="{/light/status}"
                                    change="onStatusChange"/>
                        </InputListItem>
                    </List>
                </Page>
            </IconTabFilter>
        </items>
    </IconTabBar>
</mvc:View>

And a controller:

sap.ui.define([
        'jquery.sap.global',
        'sap/ui/core/mvc/Controller',
        'sap/ui/model/json/JSONModel',
        "sap/ui/model/resource/ResourceModel",
        'gonzalo123/model/io'
    ],

    function (jQuery, Controller, JSONModel, ResourceModel, io) {
        "use strict";

        io.connect("//192.168.1.104:3000/");

        return Controller.extend("gonzalo123.controller.Controller", {
            model: new JSONModel({
                light: {
                    status: false,
                    level: undefined
                },
                potentiometer: undefined,
                temperature: undefined
            }),

            onInit: function () {
                var model = this.model;
                io.on('mqtt', function (data) {
                    switch (data.topic) {
                        case 'sensors/arduino/temperature/room1':
                            model.setProperty("/temperature", data.payload);
                            break;
                        case 'sensors/arduino/light/room1':
                            model.setProperty("/light/level", data.payload);
                            break;
                        case 'sensors/nodemcu/potentiometer/room1':
                            model.setProperty("/potentiometer", data.payload);
                            break;
                        case 'sensors/arduino/light/status':
                            model.setProperty("/light/status", data.payload == "1");
                            break;
                    }
                });

                this.getView().setModel(this.model);

                var i18nModel = new ResourceModel({
                    bundleName: "gonzalo123.i18n.i18n"
                });

                this.getView().setModel(i18nModel, "i18n");
            },

            onStatusChange: function () {
                io.emit('mqtt', {
                    topic: 'sensors/arduino/light/change',
                    payload: (this.getView().getModel().oData.light.status ? "1" : "0")
                });
            }
        });
    }
);

The real time part we need a gateway between websockets and mqtt data. We’ll use socket.io. Here is the server:

var mqtt = require('mqtt');
var mqttClient = mqtt.connect('mqtt://192.168.1.104');
var httpServer = require('http').createServer();
io = require('socket.io')(httpServer, {origins: '*:*'});

io.on('connection', function(client){
    client.on('mqtt', function(msg){
        console.log("ws", msg);
        mqttClient.publish(msg.topic, msg.payload.toString());
    })
});

mqttClient.on('connect', function () {
    mqttClient.subscribe('sensors/#');
});

mqttClient.on('message', function (topic, message) {
    console.log("mqtt", topic, message.toString());
    io.sockets.emit('mqtt', {
        topic: topic,
        payload: message.toString()
    });
});

httpServer.listen(3000, '0.0.0.0');

Hardware

  • 1 Arduino Uno
  • 1 NodeMCU (V3)
  • 1 potentiometer
  • 1 Servo (SG90)
  • 1 Raspberry Pi 3
  • 3.5inch Display Hat for Raspberry Pi
  • LM35
  • CDS
  • pull down resistor

Source code available in my github account

NFC tag reader with Raspberry Pi

In another post we spoke about NFC tag readers and Arduino. Today I’ll do the same but with a Raspberry Pi. Why? More or less everything we can do with an Arduino board we can do it also with a Raspberry Pi (and viceversa). Sometimes Arduino is to much low level for me. For example if we want to connect an Arduino to the LAN we need to set up mac address by hand. We can do it but this operation is trivial with Raspberry Pi and Python. We can connect our Arduino to a PostgreSQL Database, but it’s not pretty straightforward. Mi background is also better with Python than C++, so I feel more confortable working with Raspberry Pi. I’m not saying that RPi is better than Arduino. With Arduino for example we don’t need to worry about start proceses, reboots and those kind of thing stuff that we need to worry about with computers. Arduino a Raspberry Pi are different tools. Sometimes it will be better one and sometimes the other.

So let’s start connecting our RFID/NFC Sensor MFRC522 to our Raspberry Py 3
The wiring:

  • RC522 VCC > RP 3V3
  • RC522 RST > RPGPIO25
  • RC522 GND > RP Ground
  • RC522 MISO > RPGPIO9 (MISO)
  • RC522 MOSI > RPGPIO10 (MOSO)
  • RC522 SCK > RPGPIO11 (SCLK)
  • RC522 NSS > RPGPIO8 (CE0)
  • RC522 IRQ > RPNone

I will a Python port of the example code for the NFC module MF522-AN thank to mxgxw

I’m going to use two Python Scripts. One to control NFC reader

import RPi.GPIO as gpio
import MFRC522
import sys
import time

MIFAREReader = MFRC522.MFRC522()
GREEN = 11
RED = 13
YELLOW = 15
SERVO = 12

gpio.setup(GREEN, gpio.OUT, initial=gpio.LOW)
gpio.setup(RED, gpio.OUT, initial=gpio.LOW)
gpio.setup(YELLOW, gpio.OUT, initial=gpio.LOW)
gpio.setup(SERVO, gpio.OUT)
p = gpio.PWM(SERVO, 50)

good = [211, 200, 106, 217, 168]

def servoInit():
    print "servoInit"
    p.start(7.5)

def servoOn():
    print "servoOn"
    p.ChangeDutyCycle(4.5)

def servoNone():
    print "servoOn"
    p.ChangeDutyCycle(7.5)

def servoOff():
    print "servoOff"
    p.ChangeDutyCycle(10.5)

def clean():
    gpio.output(GREEN, False)
    gpio.output(RED, False)
    gpio.output(YELLOW, False)

def main():
    servoInit()
    while 1:
        (status, TagType) = MIFAREReader.MFRC522_Request(MIFAREReader.PICC_REQIDL)
        if status == MIFAREReader.MI_OK:
            (status, backData) = MIFAREReader.MFRC522_Anticoll()
            gpio.output(YELLOW, True)
            if status == MIFAREReader.MI_OK:
                mac = []
                for x in backData[0:-1]:
                    mac.append(hex(x).split('x')[1].upper())
                print ":".join(mac)
                if good == backData:
                    servoOn()
                    gpio.output(GREEN, True)
                    time.sleep(0.5)
                    servoNone()
                else:
                    gpio.output(RED, True)
                    servoOff()
                    time.sleep(0.5)
                    servoNone()
                time.sleep(1)
                gpio.output(YELLOW, False)
                gpio.output(RED, False)

if __name__ == '__main__':
    try:
        main()
    except KeyboardInterrupt:
        print 'Interrupted'
        clean()
        MIFAREReader.GPIO_CLEEN()
        sys.exit(0)

And another one to control push button. I use this second script only to see how to use different processes.

import RPi.GPIO as gpio
import time

gpio.setwarnings(False)
gpio.setmode(gpio.BOARD)
BUTTON = 40
GREEN = 11
RED = 13
YELLOW = 15

gpio.setup(GREEN, gpio.OUT)
gpio.setup(RED, gpio.OUT)
gpio.setup(YELLOW, gpio.OUT)

gpio.setup(BUTTON, gpio.IN, pull_up_down=gpio.PUD_DOWN)
gpio.add_event_detect(BUTTON, gpio.RISING)
def leds(status):
    gpio.output(YELLOW, status)
    gpio.output(GREEN, status)
    gpio.output(RED, status)

def buttonCallback(pin):
    if gpio.input(pin) == 1:
        print "STOP"
        leds(True)
        time.sleep(0.2)
        leds(False)
        time.sleep(0.2)
        leds(True)
        time.sleep(0.2)
        leds(False)

gpio.add_event_callback(BUTTON, buttonCallback)
while 1:
    pass

Here a video with a working example (I’ve also put a servo and and three leds only because it looks good :))

Code in my github account

Arduino and Raspberry Pi working together. Part 2 (now with i2c)

The easiest way to connect our Arduino board to our Raspberry Py is using the USB cable, but sometimes this communication is a nightmare, especially because there isn’t any clock signal to synchronize our devices and we must rely on the bitrate. There’re different ways to connect our Arduino and our Raspberry Py such as I2C, SPI and serial over GPIO. Today we’re going to speak about I2C, especially because it’s pretty straightforward if we take care with a couple of things. Let’s start.

I2C uses two lines SDA (data) and SCL (clock), in addition to GND (ground). SDA is bidirectional so we need to ensure, in one way or another, who is sending data (master or slave). With I2C only master can start communications and also master controls the clock signal. Each device has a 7bit direction so we can connect 128 devices to the same bus.

If we want to connect Arduino board and Raspberry Pi we must ensure that Raspberry Pi is the master. That’s because Arduino works with 5V and Raspberry Pi with 3.3V. That means that we need to use pull-up resistors if we don’t want destroy our Raspberry Pi. But Raspberry Pi has 1k8 ohms resistors to the 3.3 votl power rail, so we can connect both devices (if we connect other i2c devices to the bus they must have their pull-up resistors removed)

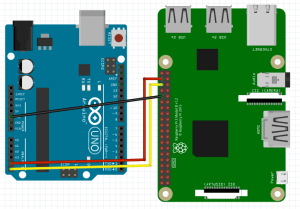

Thats all we need to connect our Raspberry pi to our Arduino board.

  • RPi SDA to Arduino analog 4
  • RPi SCL to Arduino analog 5
  • RPi GND to Arduino GND

Now we are going to build a simple prototype. Raspberry Pi will blink one led (GPIO17) each second and also will send a message (via I2C) to Arduino to blink another led. That’s the Python part

import RPi.GPIO as gpio
import smbus
import time
import sys

bus = smbus.SMBus(1)
address = 0x04

def main():
    gpio.setmode(gpio.BCM)
    gpio.setup(17, gpio.OUT)
    status = False
    while 1:
        gpio.output(17, status)
        status = not status
        bus.write_byte(address, 1 if status else 0)
        print "Arduino answer to RPI:", bus.read_byte(address)
        time.sleep(1)


if __name__ == '__main__':
    try:
        main()
    except KeyboardInterrupt:
        print 'Interrupted'
        gpio.cleanup()
        sys.exit(0)

And finally the Arduino program. Arduino also answers to Raspberry Pi with the value that it’s been sent, and Raspberry Pi will log the answer within console.

#include <Wire.h>

#define SLAVE_ADDRESS 0x04
#define LED  13

int number = 0;

void setup() {
  pinMode(LED, OUTPUT);
  Serial.begin(9600);
  Wire.begin(SLAVE_ADDRESS);
  Wire.onReceive(receiveData);
  Wire.onRequest(sendData);

  Serial.println("Ready!");
}

void loop() {
  delay(100);
}

void receiveData(int byteCount) {
  Serial.print("receiveData");
  while (Wire.available()) {
    number = Wire.read();
    Serial.print("data received: ");
    Serial.println(number);

    if (number == 1) {
      Serial.println(" LED ON");
      digitalWrite(LED, HIGH);
    } else {
      Serial.println(" LED OFF");
      digitalWrite(LED, LOW);
    }
  }
}

void sendData() {
  Wire.write(number);
}

Hardware:

  • Arduino UNO
  • Raspberry Pi
  • Two LEDs and two resistors

Code available in my github

Arduino and Raspberry Pi working together

Basically everything we can do with Arduino it can be done also with a Raspberry Pi (an viceversa). There’re things that they’re easy to do with Arduino (connect sensors for example). But another things (such as work with REST servers, databases, …) are “complicated” with Arduino and C++ (they are possible but require a lot of low level operations) and pretty straightforward with Raspberry Pi and Python (at least for me and because of my background)

With this small project I want to use an Arduino board and Raspberry Pi working together. The idea is blink two LEDs. One (green one) will be controlled by Raspberry Pi directly via GPIO and another one (red one) will be controlled by Arduino board. Raspberry Pi will be the “brain” of the project and will tell to Arduino board when turn on/off it’s led. Let’s show you the code.

import RPi.GPIO as gpio
import serial
import time
import sys
import os

def main():
    gpio.setmode(gpio.BOARD)
    gpio.setup(12, gpio.OUT)

    s = serial.Serial('/dev/ttyACM0', 9600)
    status = False

    while 1:
        gpio.output(12, status)
        status = not status
        print status
        s.write("1\n" if status else "0\n")
        time.sleep(1)

if __name__ == '__main__':
    try:
        main()
    except KeyboardInterrupt:
        print 'Interrupted'
        gpio.cleanup()
        try:
            sys.exit(0)
        except SystemExit:
            os._exit(0)

As we can see the script is a simple loop and blink led (using pin 12) with one interval of one second. Our Arduino board is connected directly to the Raspberry Pi via USB cable and we send commands via serial interface.

Finally the Arduino program:

#define LED  11

String serialData = "";
boolean onSerialRead = false;

void setup() {
  // initialize serial:
  Serial.begin(9600);
  serialData.reserve(200);
}

void procesSerialData() {
  Serial.print("Data " + serialData);
  if (serialData == "1") {
    Serial.println(" LED ON");
    digitalWrite(LED, HIGH);
  } else {
    Serial.println(" LED OFF");
    digitalWrite(LED, LOW);
  }
  serialData = "";
  onSerialRead = false;
}

void loop() {
  if (onSerialRead) {
    procesSerialData();
  }
}

void serialEvent() {
  while (Serial.available()) {
    char inChar = (char)Serial.read();
    if (inChar == '\n') {
      onSerialRead = true;
    } else {
      serialData += inChar;
    }
  }
}

Here our Arduino Board is listening to serial interface (with serialEvent) and each time we receive “\n” the main loop will turn on/off the led depending on value (1 – On, 0 – Off)

We can use I2C and another ways to connect Arduino and Raspberry Pi but in this example we’re using the simplest way to do it: A USB cable. We only need a A/B USB cable. We don’t need any other extra hardware (such as resistors) and the software part is pretty straightforward also.

Hardware:

  • Arduino UNO
  • Raspberry Pi 3
  • Two LEDs and two resistors

Code in my github account

Control humidity with a Raspberry Pi and IoT devices

I’ve got a Wemo switch and a BeeWi temperature/humidity sensor. I’ve use them in previous projects. Today I want a control humidity level in a room. The idea is switch on/off a dehumidifier (plugged to Wemo switch) depending on the humidity (from BeeWi sensor). Let’s start.

I’ve got one script (node) that reads humidity from the sensor (via BTLE)

#!/usr/bin/env node
noble = require('noble');

var status = false;
var address = process.argv[2];

if (!address) {
    console.log('Usage "./reader.py <sensor mac address>"');
    process.exit();
}

function hexToInt(hex) {
    var num, maxVal;
    if (hex.length % 2 !== 0) {
        hex = "0" + hex;
    }
    num = parseInt(hex, 16);
    maxVal = Math.pow(2, hex.length / 2 * 8);
    if (num > maxVal / 2 - 1) {
        num = num - maxVal;
    }

    return num;
}

noble.on('stateChange', function(state) {
    status = (state === 'poweredOn');
});

noble.on('discover', function(peripheral) {
    if (peripheral.address == address) {
        var data = peripheral.advertisement.manufacturerData.toString('hex');
        console.log(Math.min(100,parseInt(data.substr(14, 2),16)));
        noble.stopScanning();
        process.exit();
    }
});

noble.on('scanStop', function() {
    noble.stopScanning();
});

setTimeout(function() {
    noble.stopScanning();
    noble.startScanning();
}, 3000);

Now I’ve got another script to control the switch. A Python script using ouimeaux library

#!/usr/bin/env python
from ouimeaux.environment import Environment
from subprocess import check_output
import sys
import os

threshold = 3

def action(switch):
    humidity = int(check_output(["%s/reader.js" % os.path.dirname(sys.argv[0]), sensorMac]))
    if "Switch1" == switch.name:
        botton = expected - threshold
        isOn = False if switch.get_state() == 0 else True
        log = ""

        if isOn and humidity < botton:
            switch.basicevent.SetBinaryState(BinaryState=0)
            log = "humidity < %s Switch to OFF" % botton
        elif not isOn and humidity > expected:
            switch.basicevent.SetBinaryState(BinaryState=1)
            log = "humidity > %s Switch to ON" % expected

        print "Humidity: %s Switch is OK (%s) %s" % (humidity, 'On' if isOn else 'Off', log)

if __name__ == '__main__':
    try:
        sensorMac = sys.argv[1]
        mySwitch = sys.argv[2]
        expected = int(sys.argv[3])
    except:
        print 'Usage "./dehumidifier.py <sensorMac> <switch name> <expected humidity>"'
        sys.exit()

    env = Environment(action)
    env.start()
    env.discover(seconds=3)

And that’s all. Now I only need to configure my Raspberry Pi’s crontab and run the script each minute

*/1 * * * *     /mnt/media/projects/hum/dehumidifier.py ff:ff:ff:ff:ff:ff Switch1 50

Project is available in my github account.

Nowadays I’m involved with Arduino and iot, so I wand to do something similar with cheaper Arduino stuff.

Smart bulb controlled from a Raspberry Pi with Python. My RGB alarm clock

I’ve got a BeeWi Smart LED Color Bulb. I must admit I cannot resist to buy those kind of devices :).

I can switch on/off the bulb and change the color using its Mobile App, but it’s not fun. I want to play a little bit with the bulb. My idea is the following one: First switch on the bulb in the mornint and set up the bulb color (Blue for example). Then change bulb color depending on my morning routine. And finally switch the bulb off. Now with this bulb’s color I know if my morning routine is on-time, just looking at the bulb’s color. For example if the bulb is red and I’m still having breakfast probably I’m late.

The prototype is very simple. The bulb has a bluetooth interface and I’ve found a python script to control the bulb. I’ve changed a little bit this script to adapt it to my needs.

Now I only need to set up the crontab within my Raspberry Pi to trigger the script and switch on/off the bulb and change the RGB color.

for example:

# switch on the bulb
/usr/bin/python /mnt/media/projects/iot/bulb.py /mnt/media/projects/iot/conf.json on
# set bulb's color to green
/usr/bin/python /mnt/media/projects/iot/bulb.py /mnt/media/projects/iot/conf.json colour 999900

In another post we play with Telegram bots to read temperature. Now I’ve adapted also my bot to switch on/off and change color of the bulb.

Now I’ve got another toy in my desk. One arduino board. I’m sure I will enjoy a lot 🙂

Home automation pet project. Playing with IoT, temperature sensors, fans and Telegram bots

Summer holidays are over. Besides my bush walks I’ve been also hacking a little bit with one idea that I had in mind. Summer means high temperatures and I wanted to control my fan. For example turn on the fan when temperature is over a threshold. I can do it using an Arduino board and a temperature sensor, but I don’t have the one Arduino board. I have several devices. For example a Wemo switch. With this device connected to my Wifi network I can switch on and off my fan remotely from my mobile phone (using its android app) or even from my Pebble watch using the API. I also have a BeeWi temperature/humidity sensor. It’s a BTLE device. It comes with its own app for android, but there’s also a API. Yes. I known that one Arduino board with a couple of sensors can be cheaper than one of this devices, but when I’m a shop and I’ve got one of this devices in my hands I cannot resist.

I also have a new Raspberry pi 3. I’ve recently upgraded my home multimedia server from a rpi2 to the new rpi3. Basically I use it as multimedia server and now also as retro console. This new rpi3 has Bluetooth so I wanted to do something with it. Read temperature from the Bluetooth sensor sounds good so I started to hack a little bit.

I found this post. I started working with Python. The script almost works but it uses Bluetooth connection and as someone said in the comments it uses a lot of battery. So I switched to a BTLE version. I found a simple node library to connect BTLE devices called noble, really simple to use. In one afternoon I had one small script ready. The idea was put this script in my RP3’s crontab, and scan the temperature each minute (via noble) and if the temperature was over a threshold switch on the wemo device (via ouimeaux). I also wanted to be informed when my fan is switch on and off. The most easier way to do it was via Telegram (I already knew telebot library).

var noble = require('noble'),
    Wemo = require('wemo-client'),
    TeleBot = require('telebot'),
    fs = require('fs'),
    beeWiData,
    wemo,
    threshold,
    address,
    bot,
    chatId,
    wemoDevice,
    configuration,
    confPath;

if (process.argv.length <= 2) {
    console.log("Usage: " + __filename + " conf.json");
    process.exit(-1);
}

confPath = process.argv[2];
try {
    configuration = JSON.parse(
        fs.readFileSync(process.argv[2])
    );
} catch (e) {
    console.log("configuration file not valid");
    process.exit(-1);
}

bot = new TeleBot(configuration.telegramBotAPIKey);
address = configuration.beeWiAddress;
threshold = configuration.threshold;
wemoDevice = configuration.wemoDevice;
chatId = configuration.telegramChatId;

function persists() {
    configuration.beeWiData = beeWiData;
    fs.writeFileSync(confPath, JSON.stringify(configuration));
}

function setSwitchState(state, callback) {
    wemo = new Wemo();
    wemo.discover(function(deviceInfo) {
        if (deviceInfo.friendlyName == wemoDevice) {
            console.log("device found:", deviceInfo.friendlyName, "setting the state to", state);
            var client = wemo.client(deviceInfo);
            client.on('binaryState', function(value) {
                callback();
            });

            client.on('statusChange', function(a) {
                console.log("statusChange", a);
            });
            client.setBinaryState(state);
        }
    });
}

beeWiData = {temperature: undefined, humidity: undefined, batery: undefined};

function hexToInt(hex) {
    if (hex.length % 2 !== 0) {
        hex = "0" + hex;
    }
    var num = parseInt(hex, 16);
    var maxVal = Math.pow(2, hex.length / 2 * 8);
    if (num > maxVal / 2 - 1) {
        num = num - maxVal;
    }
    return num;
}

noble.on('stateChange', function(state) {
    if (state === 'poweredOn') {
        noble.stopScanning();
        noble.startScanning();
    } else {
        noble.stopScanning();
    }
});

noble.on('scanStop', function() {
    var message, state;
    if (beeWiData.temperature > threshold) {
        state = 1;
        message = "temperature (" + beeWiData.temperature + ") over threshold (" + threshold + "). Fan ON. Humidity: " + beeWiData.humidity;
    } else {
        message = "temperature (" + beeWiData.temperature + ") under threshold (" + threshold + "). Fan OFF. Humidity: " + beeWiData.humidity;
        state = 0;
    }
    setSwitchState(state, function() {
        if (configuration.beeWiData.hasOwnProperty('temperature') && configuration.beeWiData.temperature < threshold && state === 1 || configuration.beeWiData.temperature > threshold && state === 0) {
            console.log("Notify to telegram bot", message);
            bot.sendMessage(chatId, message).then(function() {
                process.exit(0);
            }, function(e) {
                console.error(e);
                process.exit(0);
            });
            persists();
        } else {
            console.log(message);
            persists();
            process.exit(0);
        }
    });
});

noble.on('discover', function(peripheral) {
    if (peripheral.address == address) {
        var data = peripheral.advertisement.manufacturerData.toString('hex');
        beeWiData.temperature = parseFloat(hexToInt(data.substr(10, 2)+data.substr(8, 2))/10).toFixed(1);
        beeWiData.humidity = Math.min(100,parseInt(data.substr(14, 2),16));
        beeWiData.batery = parseInt(data.substr(24, 2),16);
        beeWiData.date = new Date();
        noble.stopScanning();
    }
});

setTimeout(function() {
    console.error("timeout exceded!");
    process.exit(0);
}, 5000);

The script is here.

It works but I wanted to keep on hacking. One Sunday morning I read this post. I don’t have an amazon button, but I wanted to do something similar. I started to play with scapy library sniffing ARP packets in my home network. I realize that I can detect when my Kindle connects to the network, my tv, or even my mobile phone. Then I had one I idea: Detect when my mobile phone connects to my wifi. My mobile phone connects to my wifi before I enter in my house so my idea was simple: Detect when I’m close to my home’s door and send me a telegram message saying “Wellcome home” in addition to the temperature inside my house at this moment.

#!/usr/bin/env python

import sys
from scapy.all import *
import telebot
import gearman
import json
from StringIO import StringIO

BUFFER_SIZE = 1024

try:
    with open(sys.argv[1]) as data_file:
        data = json.load(data_file)
        myPhone = data['myPhone']
        routerIP = data['routerIP']
        TOKEN = data['telegramBotAPIKey']
        chatID = data['telegramChatId']
        gearmanServer = data['gearmanServer']
except:
    print("Unexpected error:", sys.exc_info()[0])
    raise

def getSensorData():
    gm_client = gearman.GearmanClient([gearmanServer])
    completed_job_request = gm_client.submit_job("temp", '')
    io = StringIO(completed_job_request.result)

    return json.load(io)

tb = telebot.TeleBot(TOKEN)

def arp_display(pkt):
    if pkt[ARP].op == 1 and pkt[ARP].hwsrc == myPhone and pkt[ARP].pdst == routerIP:
        sensorData = getSensorData()
        message = "Wellcome home Gonzalo! Temperature: %s humidity: %s" % (sensorData['temperature'], sensorData['humidity'])
        tb.send_message(chatID, message)
        print message

print sniff(prn=arp_display, filter='arp', store=0)

I have one node script to read temperature and one Python script to sniff my network. I can find how to read temperature from Python and use only one script but I was lazy (remember that I was on holiday) so I turned the node script that reads temperature into a gearman worker.

var noble = require('noble'),
    fs = require('fs'),
    Gearman = require('node-gearman'),
    beeWiData,
    address,
    bot,
    configuration,
    confPath,
    status,
    callback;

var gearman = new Gearman();

if (process.argv.length <= 2) {
    console.log("Usage: " + __filename + " conf.json");
    process.exit(-1);
}

confPath = process.argv[2];
try {
    configuration = JSON.parse(
        fs.readFileSync(process.argv[2])
    );
} catch (e) {
    console.log("configuration file not valid", e);
    process.exit(-1);
}

address = configuration.beeWiAddress;
delay = configuration.tempServerDelayMinutes * 60 * 1000;
tcpPort = configuration.tempServerPort;

beeWiData = {};

function hexToInt(hex) {
    if (hex.length % 2 !== 0) {
        hex = "0" + hex;
    }
    var num = parseInt(hex, 16);
    var maxVal = Math.pow(2, hex.length / 2 * 8);
    if (num > maxVal / 2 - 1) {
        num = num - maxVal;
    }
    return num;
}

noble.on('stateChange', function(state) {
    if (state === 'poweredOn') {
        console.log("stateChange:poweredOn");
        status = true;
    } else {
        status = false;
    }
});

noble.on('discover', function(peripheral) {
    if (peripheral.address == address) {
        var data = peripheral.advertisement.manufacturerData.toString('hex');
        beeWiData.temperature = parseFloat(hexToInt(data.substr(10, 2)+data.substr(8, 2))/10).toFixed(1);
        beeWiData.humidity = Math.min(100,parseInt(data.substr(14, 2),16));
        beeWiData.batery = parseInt(data.substr(24, 2),16);
        beeWiData.date = new Date();
        noble.stopScanning();
    }
});

noble.on('scanStop', function() {
    console.log(beeWiData);
    noble.stopScanning();
    callback();
});

var worker;

function workerCallback(payload, worker) {
    callback = function() {
        worker.end(JSON.stringify(beeWiData));
    }

    beeWiData = {temperature: undefined, humidity: undefined, batery: undefined};

    if (status) {
        noble.stopScanning();
        noble.startScanning();
    } else {
        setInterval(function() {
            workerCallback(payload, worker);
        }, 1000);
    }
}

gearman.registerWorker("temp", workerCallback);

Now I only need to call this worker from my Python sniffer and thats all.

I wanted to play a little bit. I also wanted to ask the temperature on demand. Since I was using Telegram I had an idea. Create a Telegram bot running in my RP3. And that’s my summer pet project. Basically it has three parts:

worker.js
It’s a gearman worker. It reads temperature and humidity from my BeeWi sensor via BTLE

bot.py
It’s a Telegram bot with the following commands available:

/switchInfo: get switch info
/switchOFF: switch OFF the switch
/help: Gives you information about the available commands
/temp: Get temperature
/switchON: switch ON the switch

sniff.py
It’s just a ARP sniffer. It detects when I’m close to my home and sends me a message via Telegram with the temperature. It detects when my mobile phone sends a ARP package to my router (aka when I connect to my Wifi). It happens before I enter in my house, so the Telegram message arrives before I put the key in the door 🙂

I run al my scripts in my Raspberry Pi3. To ensure all scripts are up an running I use supervisor

All the scripts are available in my github account
