PHP/Lumen data source for Grafana

Today I need to integrate a third party service into Grafana. I cannot access directly to the service’s database, so I will integrate via JSON datasource. Grafana allows us to build custom data sources but in this case I don’t need to create a new one. I can use the simple JSON datasource

grafana-cli plugins install grafana-simple-json-datasource

Now I need to create one REST server to serve the data that our JSON datasource needs. According to the documentation we need three routes:

  • GET / should return 200 ok.
  • POST /search used by the find metric options on the query tab in panels.
  • POST /query should return metrics based on input.
  • POST /annotations should return annotations.

We’re going to create a PHP/Lumen server. Basically the routes of the application are those ones:

<?php

use Laravel\Lumen\Routing\Router;
use App\Http\Middleware;
use Laravel\Lumen\Application;
use Dotenv\Dotenv;
use App\Http\Handlers;

require_once __DIR__ . '/../vendor/autoload.php';

(Dotenv::create(__DIR__ . '/../env/local'))->load();

$app = new Application(dirname(__DIR__));
$app->middleware([
    Middleware\CorsMiddleware::class,
]);

$app->router->group(['middleware' => Middleware\AuthMiddleware::class], function (Router $router) {
    $router->get('/', Handlers\HelloHandler::class);
    $router->post('/search', Handlers\SearchHandler::class);
    $router->post('/query', Handlers\QueryHandler::class);
    $router->post('/annotations', Handlers\AnnotationHandler::class);
});

return $app;

We need to take care with CORS. I will use the Middleware that I normally use in those cases

<?php

namespace App\Http\Middleware;

use Closure;

class CorsMiddleware
{
    public function handle($request, Closure $next)
    {
        $headers = [
            'Access-Control-Allow-Origin'      => 'http://localhost:3000',
            'Access-Control-Allow-Methods'     => 'POST, GET, OPTIONS, PUT, DELETE',
            'Access-Control-Allow-Credentials' => 'true',
            'Access-Control-Max-Age'           => '86400',
            'Access-Control-Allow-Headers'     => 'accept, content-type, Content-Type, Authorization, X-Requested-With',
        ];

        if ($request->isMethod('OPTIONS')) {
            return response()->json('{"method":"OPTIONS"}', 200, $headers);
        }

        $response = $next($request);
        foreach ($headers as $key => $value) {
            $response->header($key, $value);
        }

        return $response;
    }
}

I’ll use also a basic authentication so we’ll use a simple Http Basic Authentication middleware

<?php

namespace App\Http\Middleware;

use Closure;
use Illuminate\Http\Request;

class AuthMiddleware
{
    const NAME = 'auth.web';

    public function handle(Request $request, Closure $next)
    {
        if ($request->getUser() != env('HTTP_USER') || $request->getPassword() != env('HTTP_PASS')) {
            $headers = ['WWW-Authenticate' => 'Basic'];

            return response('Unauthorized', 401, $headers);
        }

        return $next($request);
    }
}

HelloHandler is a dummy route that the datasource needs to check the connection. We only need to answer with a 200-OK

<?php
namespace App\Http\Handlers;

class HelloHandler
{
    public function __invoke()
    {
        return "Ok";
    }
}

SearchHandler will return the list of available metrics that we´ll use within our grafana panels. They aren’t strictly necessary. We can return an empty array and use later one metric that it isn’t defined here (it’s only to fill the combo that grafana shows us)

<?php
namespace App\Http\Handlers;

class SearchHandler
{
    public function __invoke()
    {
        return [25, 50, 100];
    }
}
```

QueryHandler is an important one. Here we'll return the datapoints that we´ll show in grafana. For testing purposes I've created one handler that read the metric, and the date from and date to that grafana sends to the backend and return a random values for several metrics and fixed ones to the rest. It's basically to see something in grafana. Later, in the real life project, I'll query the database and return real data.


<?php

namespace App\Http\Handlers;

use Illuminate\Http\Request;

class QueryHandler
{
    public function __invoke(Request $request)
    {
        $json   = $request->json();
        $range  = $json->get('range');
        $target = $json->get('targets')[0]['target'];

        $tz   = new \DateTimeZone('Europe/Madrid');
        $from = \DateTimeImmutable::createFromFormat("Y-m-d\TH:i:s.uP", $range['from'], $tz);
        $to   = \DateTimeImmutable::createFromFormat("Y-m-d\TH:i:s.uP", $range['to'], $tz);

        return ['target' => $target, 'datapoints' => $this->getDataPoints($from, $to, $target)];
    }

    private function getDataPoints($from, $to, $target)
    {
        $interval = new \DateInterval('PT1H');
        $period   = new \DatePeriod($from, $interval, $to->add($interval));

        $dataPoints = [];
        foreach ($period as $date) {
            $value        = $target > 50 ? rand(0, 100) : $target;
            $dataPoints[] = [$value, strtotime($date->format('Y-m-d H:i:sP')) * 1000];
        }

        return $dataPoints;
    }
}

Also I’ll like to use annotations. It’s something similar. AnnotationHandler will handle this request. For this test I’ve created two types of annotations: One each hour and another one each 6 hours

<?php

namespace App\Http\Handlers;

use Illuminate\Http\Request;

class AnnotationHandler
{
    public function __invoke(Request $request)
    {
        $json       = $request->json();
        $annotation = $json->get('annotation');
        $range      = $json->get('range');

        return $this->getAnnotations($annotation, $range);
    }

    private function getAnnotations($annotation, $range)
    {
        return $this->getValues($range, 'PT' . $annotation['query'] . 'H');
    }


    private function getValues($range, $int)
    {
        $tz   = new \DateTimeZone('Europe/Madrid');
        $from = \DateTimeImmutable::createFromFormat("Y-m-d\TH:i:s.uP", $range['from'], $tz);
        $to   = \DateTimeImmutable::createFromFormat("Y-m-d\TH:i:s.uP", $range['to'], $tz);

        $annotation = [
            'name'       => $int,
            'enabled'    => true,
            'datasource' => "gonzalo datasource",
            'showLine'   => true,
        ];

        $interval = new \DateInterval($int);
        $period   = new \DatePeriod($from, $interval, $to->add($interval));

        $annotations = [];
        foreach ($period as $date) {
            $annotations[] = ['annotation' => $annotation, "title" => "H " . $date->format('H'), "time" => strtotime($date->format('Y-m-d H:i:sP')) * 1000, 'text' => "teeext"];
        }

        return $annotations;
    }
}

And that’s all. I’ve also put the whole example in a docker-compose file to test it

version: '2'

services:
  nginx:
    image: gonzalo123.nginx
    restart: always
    ports:
      - "80:80"
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-nginx
    volumes:
      - ./src/api:/code/src
  api:
    image: gonzalo123.api
    restart: always
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-lumen-dev
    environment:
      XDEBUG_CONFIG: remote_host=${MY_IP}
    volumes:
      - ./src/api:/code/src
  grafana:
    image: gonzalo123.grafana
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-grafana
    restart: always
    environment:
      - GF_SECURITY_ADMIN_USER=${GF_SECURITY_ADMIN_USER}
      - GF_SECURITY_ADMIN_PASSWORD=${GF_SECURITY_ADMIN_PASSWORD}
      - GF_USERS_DEFAULT_THEME=${GF_USERS_DEFAULT_THEME}
      - GF_USERS_ALLOW_SIGN_UP=${GF_USERS_ALLOW_SIGN_UP}
      - GF_USERS_ALLOW_ORG_CREATE=${GF_USERS_ALLOW_ORG_CREATE}
      - GF_AUTH_ANONYMOUS_ENABLED=${GF_AUTH_ANONYMOUS_ENABLED}
      - GF_INSTALL_PLUGINS=${GF_INSTALL_PLUGINS}
    ports:
      - "3000:3000"
    volumes:
      - grafana-db:/var/lib/grafana
      - grafana-log:/var/log/grafana
      - grafana-conf:/etc/grafana
volumes:
  grafana-db:
    driver: local
  grafana-log:
    driver: local
  grafana-conf:
    driver: local

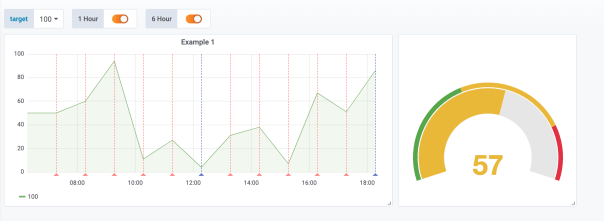

Here you can see the example in action:

Full code in my github

Monitoring the bandwidth (part 2) now with Python Nameko microservice

This days I’ve been playing with Nameko. The Python framework for building microservices. Today I want to upgrade one small pet project that I’ve got in my house to monitor the bandwidth of my internet connection. I want to use one nameko microservice using the Timer entrypoint.

That’s the worker:

from nameko.timer import timer
import datetime
import logging
import os
import speedtest
from dotenv import load_dotenv
from influxdb import InfluxDBClient

current_dir = os.path.dirname(os.path.abspath(__file__))
load_dotenv(dotenv_path="{}/.env".format(current_dir))


class SpeedService:
    name = "speed"

    def __init__(self):
        self.influx_client = InfluxDBClient(
            host=os.getenv("INFLUXDB_HOST"),
            port=os.getenv("INFLUXDB_PORT"),
            database=os.getenv("INFLUXDB_DATABASE")
        )

    @timer(interval=3600)
    def speedTest(self):
        logging.info("speedTest")
        current_time = datetime.datetime.utcnow().isoformat()
        speed = self.get_speed()

        self.persists(measurement='download', fields={"value": speed['download']}, time=current_time)
        self.persists(measurement='upload', fields={"value": speed['upload']}, time=current_time)
        self.persists(measurement='ping', fields={"value": speed['ping']}, time=current_time)

    def persists(self, measurement, fields, time):
        logging.info("{} {} {}".format(time, measurement, fields))
        self.influx_client.write_points([{
            "measurement": measurement,
            "time": time,
            "fields": fields
        }])

    @staticmethod
    def get_speed():
        logging.info("Calculating speed ...")
        s = speedtest.Speedtest()
        s.get_best_server()
        s.download()
        s.upload()

        return s.results.dict()

I need to adapt my docker-compose file to include the RabbitMQ server (Nameko needs a RabbitMQ message broker)

version: '3'

services:
  speed.worker:
    container_name: speed.worker
    image: speed/worker
    restart: always
    build:
      context: ./src/speed.worker
      dockerfile: .docker/Dockerfile-worker
    command: /bin/bash run.sh
  rabbit:
    container_name: speed.rabbit
    image: rabbitmq:3-management
    restart: always
    ports:
      - "15672:15672"
      - "5672:5672"
    environment:
      RABBITMQ_ERLANG_COOKIE:
      RABBITMQ_DEFAULT_VHOST: /
      RABBITMQ_DEFAULT_USER: ${RABBITMQ_DEFAULT_USER}
      RABBITMQ_DEFAULT_PASS: ${RABBITMQ_DEFAULT_PASS}
  influxdb:
    container_name: speed.influxdb
    image: influxdb:latest
    restart: always
    environment:
    - INFLUXDB_DB=${INFLUXDB_DB}
    - INFLUXDB_ADMIN_USER=${INFLUXDB_ADMIN_USER}
    - INFLUXDB_ADMIN_PASSWORD=${INFLUXDB_ADMIN_PASSWORD}
    - INFLUXDB_HTTP_AUTH_ENABLED=${INFLUXDB_HTTP_AUTH_ENABLED}
    volumes:
    - influxdb-data:/data
  grafana:
    container_name: speed.grafana
    build:
      context: ./src/grafana
      dockerfile: .docker/Dockerfile-grafana
    restart: always
    environment:
    - GF_SECURITY_ADMIN_USER=${GF_SECURITY_ADMIN_USER}
    - GF_SECURITY_ADMIN_PASSWORD=${GF_SECURITY_ADMIN_PASSWORD}
    - GF_USERS_DEFAULT_THEME=${GF_USERS_DEFAULT_THEME}
    - GF_USERS_ALLOW_SIGN_UP=${GF_USERS_ALLOW_SIGN_UP}
    - GF_USERS_ALLOW_ORG_CREATE=${GF_USERS_ALLOW_ORG_CREATE}
    - GF_AUTH_ANONYMOUS_ENABLED=${GF_AUTH_ANONYMOUS_ENABLED}
    ports:
    - "3000:3000"
    depends_on:
    - influxdb
volumes:
  influxdb-data:
    driver: local

And that’s all. Over engineering to control my Internet Connection? Maybe, but that’s the way I learn new stuff 🙂

Source code available in my github.

Monitoring the bandwidth with Grafana, InfluxDB and Docker

Time ago, when I was an ADSL user in my house I had a lot problems with my internet connection. I was a bit lazy to switch to a fiber connection. Finally I changed it, but meanwhile the my Internet company was solving one incident, I started to hack a little bit a simple and dirty script that monitors my connection speed (just for fun and to practise with InfluxDB and Grafana).

Today I’ve lost my quick and dirty script (please Gonzalo keep a working backup the SD card of your Raspberry Pi Server always updated! Sometimes it crashes. It’s simple: “dd if=/dev/disk3 of=pi3.img” 🙂 and I want to rebuild it. This time I want to use Docker (just for fun). Let’s start.

To monitor the bandwidth we only need to use the speedtest-cli api. We can use this api from command line and, as it’s a python library, we can create one python script that uses it.

import datetime
import logging
import os
import speedtest
import time
from dotenv import load_dotenv
from influxdb import InfluxDBClient

logging.basicConfig(level=logging.INFO)

current_dir = os.path.dirname(os.path.abspath(__file__))
load_dotenv(dotenv_path="{}/.env".format(current_dir))

influxdb_host = os.getenv("INFLUXDB_HOST")
influxdb_port = os.getenv("INFLUXDB_PORT")
influxdb_database = os.getenv("INFLUXDB_DATABASE")

def persists(measurement, fields, time):
    logging.info("{} {} {}".format(time, measurement, fields))

    influx_client.write_points([{
        "measurement": measurement,
        "time": time,
        "fields": fields
    }])

influx_client = InfluxDBClient(host=influxdb_host, port=influxdb_port, database=influxdb_database)

def get_speed():
    logging.info("Calculating speed ...")
    s = speedtest.Speedtest()
    s.get_best_server()
    s.download()
    s.upload()

    return s.results.dict()

def loop(sleep):
    current_time = datetime.datetime.utcnow().isoformat()
    speed = get_speed()

    persists(measurement='download', fields={"value": speed['download']}, time=current_time)
    persists(measurement='upload', fields={"value": speed['upload']}, time=current_time)
    persists(measurement='ping', fields={"value": speed['ping']}, time=current_time)

    time.sleep(sleep)

while True:
    loop(sleep=60 * 60) # each hour

Now we need to create the docker-compose file to orchestrate the infrastructure. The most complicate thing here is, maybe, to configure grafana within docker files instead of opening browser, create datasoruce and build dashboard by hand. After a couple of hours navigating into github repositories finally I created exactly what I needed for this post. Basically is a custom entry point for my grafana host that creates the datasource and dashboard (via Grafana’s API)

version: '3'

services:
  check:
    image: gonzalo123.check
    restart: always
    volumes:
    - ./src/beat:/code/src
    depends_on:
    - influxdb
    build:
      context: ./src
      dockerfile: .docker/Dockerfile-check
    networks:
    - app-network
    command: /bin/sh start.sh
  influxdb:
    image: influxdb:latest
    restart: always
    environment:
    - INFLUXDB_INIT_PWD="${INFLUXDB_PASS}"
    - PRE_CREATE_DB="${INFLUXDB_DB}"
    volumes:
    - influxdb-data:/data
    networks:
    - app-network
  grafana:
    image: grafana/grafana:latest
    restart: always
    ports:
    - "3000:3000"
    depends_on:
    - influxdb
    volumes:
    - grafana-db:/var/lib/grafana
    - grafana-log:/var/log/grafana
    - grafana-conf:/etc/grafana
    networks:
    - app-network

networks:
  app-network:
    driver: bridge

volumes:
  grafana-db:
    driver: local
  grafana-log:
    driver: local
  grafana-conf:
    driver: local
  influxdb-data:
    driver: local

And that’s all. My Internet connection supervised again.

Project available in my github.

Playing with Grafana and weather APIs

Today I want to play with Grafana. Let me show you my idea:

I’ve got a Beewi temperature sensor. I’ve been playing with it previously. Today I want to show the temperature within a Grafana dashboard.
I want to play also with openweathermap API.

Fist I want to retrieve the temperature from Beewi device. I’ve got a node script that connects via Bluetooth to the device using noble library.
I only need to pass the sensor mac address and I obtain a JSON with the current temperature

#!/usr/bin/env node
noble = require('noble');

var status = false;
var address = process.argv[2];

if (!address) {
    console.log('Usage "./reader.py <sensor mac address>"');
    process.exit();
}

function hexToInt(hex) {
    var num, maxVal;
    if (hex.length % 2 !== 0) {
        hex = "0" + hex;
    }
    num = parseInt(hex, 16);
    maxVal = Math.pow(2, hex.length / 2 * 8);
    if (num > maxVal / 2 - 1) {
        num = num - maxVal;
    }

    return num;
}

noble.on('stateChange', function(state) {
    status = (state === 'poweredOn');
});

noble.on('discover', function(peripheral) {
    if (peripheral.address == address) {
        var data = peripheral.advertisement.manufacturerData.toString('hex');
        out = {
            temperature: parseFloat(hexToInt(data.substr(10, 2)+data.substr(8, 2))/10).toFixed(1)
        };
        console.log(JSON.stringify(out))
        noble.stopScanning();
        process.exit();
    }
});

noble.on('scanStop', function() {
    noble.stopScanning();
});

setTimeout(function() {
    noble.stopScanning();
    noble.startScanning();
}, 2000);


setTimeout(function() {
    noble.stopScanning();
    process.exit()
}, 20000);

And finally another script (this time a Python script) to collect data from openweathermap API, collect data from node script and storing the information in a influxdb database.

from sense_hat import SenseHat
from influxdb import InfluxDBClient
import datetime
import logging
import requests
import json
from subprocess import check_output
import os
import sys
from dotenv import load_dotenv

logging.basicConfig(level=logging.INFO)

current_dir = os.path.dirname(os.path.abspath(__file__))
load_dotenv(dotenv_path="{}/.env".format(current_dir))

sensor_mac_address = os.getenv("BEEWI_SENSOR")
openweathermap_api_key = os.getenv("OPENWEATHERMAP_API_KEY")
influxdb_host = os.getenv("INFLUXDB_HOST")
influxdb_port = os.getenv("INFLUXDB_PORT")
influxdb_database = os.getenv("INFLUXDB_DATABASE")

reader = '{}/reader.js'.format(current_dir)


def get_rain_level_from_weather(weather):
    rain = False
    rain_level = 0
    if len(weather) > 0:
        for w in weather:
            if w['icon'] == '09d':
                rain = True
                rain_level = 1
            elif w['icon'] == '10d':
                rain = True
                rain_level = 2
            elif w['icon'] == '11d':
                rain = True
                rain_level = 3
            elif w['icon'] == '13d':
                rain = True
                rain_level = 4

    return rain, rain_level


def openweathermap():
    data = {}
    r = requests.get(
        "http://api.openweathermap.org/data/2.5/weather?id=3110044&appid={}&units=metric".format(
            openweathermap_api_key))

    if r.status_code == 200:
        current_data = r.json()
        data['weather'] = current_data['main']
        rain, rain_level = get_rain_level_from_weather(current_data['weather'])
        data['weather']['rain'] = rain
        data['weather']['rain_level'] = rain_level

    r2 = requests.get(
        "http://api.openweathermap.org/data/2.5/uvi?lat=43.32&lon=-1.93&appid={}".format(openweathermap_api_key))
    if r2.status_code == 200:
        data['uvi'] = r2.json()

    r3 = requests.get(
        "http://api.openweathermap.org/data/2.5/forecast?id=3110044&appid={}&units=metric".format(
            openweathermap_api_key))

    if r3.status_code == 200:
        forecast = r3.json()['list']
        data['forecast'] = []
        for f in forecast:
            rain, rain_level = get_rain_level_from_weather(f['weather'])
            data['forecast'].append({
                "dt": f['dt'],
                "fields": {
                    "temp": float(f['main']['temp']),
                    "humidity": float(f['main']['humidity']),
                    "rain": rain,
                    "rain_level": int(rain_level),
                    "pressure": float(float(f['main']['pressure']))
                }
            })

        return data


def persists(measurement, fields, location, time):
    logging.info("{} {} [{}] {}".format(time, measurement, location, fields))
    influx_client.write_points([{
        "measurement": measurement,
        "tags": {"location": location},
        "time": time,
        "fields": fields
    }])


def in_sensors():
    try:
        sense = SenseHat()
        pressure = sense.get_pressure()
        reader_output = check_output([reader, sensor_mac_address]).strip()
        sensor_info = json.loads(reader_output)
        temperature = sensor_info['temperature']

        persists(measurement='home_pressure', fields={"value": float(pressure)}, location="in", time=current_time)
        persists(measurement='home_temperature', fields={"value": float(temperature)}, location="in",
                 time=current_time)
    except Exception as err:
        logging.error(err)


def out_sensors():
    try:
        out_info = openweathermap()

        persists(measurement='home_pressure',
                 fields={"value": float(out_info['weather']['pressure'])},
                 location="out",
                 time=current_time)
        persists(measurement='home_humidity',
                 fields={"value": float(out_info['weather']['humidity'])},
                 location="out",
                 time=current_time)
        persists(measurement='home_temperature',
                 fields={"value": float(out_info['weather']['temp'])},
                 location="out",
                 time=current_time)
        persists(measurement='home_rain',
                 fields={"value": out_info['weather']['rain'], "level": out_info['weather']['rain_level']},
                 location="out",
                 time=current_time)
        persists(measurement='home_uvi',
                 fields={"value": float(out_info['uvi']['value'])},
                 location="out",
                 time=current_time)
        for f in out_info['forecast']:
            persists(measurement='home_weather_forecast',
                     fields=f['fields'],
                     location="out",
                     time=datetime.datetime.utcfromtimestamp(f['dt']).isoformat())

    except Exception as err:
        logging.error(err)


influx_client = InfluxDBClient(host=influxdb_host, port=influxdb_port, database=influxdb_database)
current_time = datetime.datetime.utcnow().isoformat()

in_sensors()
out_sensors()

I’m running this python script from a Raspberry Pi3 with a Sense Hat. Sense Hat has a atmospheric pressure sensor, so I will also retrieve the pressure from the Sense Hat.

From openweathermap I will obtain:

  • Current temperature/humidity and atmospheric pressure in the street
  • UV Index (the measure of the level of UV radiation)
  • Weather conditions (if it’s raining or not)
  • Weather forecast

I run this script with the Rasberry Pi crontab each 5 minutes. That means that I’ve got a fancy time series ready to be shown with grafana.

Here we can see the dashboard

Source code available in my github account.

Playing with Docker, MQTT, Grafana, InfluxDB, Python and Arduino

I must admit this post is just an excuse to play with Grafana and InfluxDb. InfluxDB is a cool database especially designed to work with time series. Grafana is one open source tool for time series analytics. I want to build a simple prototype. The idea is:

  • One Arduino device (esp32) emits a MQTT event to a mosquitto server. I’ll use a potentiometer to emulate one sensor (Imagine here, for example, a temperature sensor instead of potentiometer). I’ve used this circuit before in another projects
  • One Python script will be listening to the MQTT event in my Raspberry Pi and it will persist the value to InfluxDB database
  • I will monitor the state of the time series given by the potentiometer with Grafana
  • I will create one alert in Grafana (for example when the average value within 10 seconds is above a threshold) and I will trigger a webhook when the alert changes its state
  • One microservice (a Python Flask server) will be listening to the webhook and it will emit a MQTT event depending on the state
  • Another Arduino device (one NodeMcu in this case) will be listening to this MQTT event and it will activate a LED. Red one if the alert is ON and green one if the alert is OFF

The server
As I said before we’ll need three servers:

  • MQTT server (mosquitto)
  • InfluxDB server
  • Grafana server

We’ll use Docker. I’ve got a Docker host running in a Raspberry Pi3. The Raspberry Pi is a ARM device so we need docker images for this architecture.

version: '2'

services:
  mosquitto:
    image: pascaldevink/rpi-mosquitto
    container_name: moquitto
    ports:
     - "9001:9001"
     - "1883:1883"
    restart: always

  influxdb:
    image: hypriot/rpi-influxdb
    container_name: influxdb
    restart: always
    environment:
     - INFLUXDB_INIT_PWD="password"
     - PRE_CREATE_DB="iot"
    ports:
     - "8083:8083"
     - "8086:8086"
    volumes:
     - ~/docker/rpi-influxdb/data:/data

  grafana:
    image: fg2it/grafana-armhf:v4.6.3
    container_name: grafana
    restart: always
    ports:
     - "3000:3000"
    volumes:
      - grafana-db:/var/lib/grafana
      - grafana-log:/var/log/grafana
      - grafana-conf:/etc/grafana

volumes:
  grafana-db:
    driver: local
  grafana-log:
    driver: local
  grafana-conf:
    driver: local

ESP32
The Esp32 part is very simple. We only need to connect our potentiometer to the Esp32. The potentiometer has three pins: Gnd, Signal and Vcc. For signal we’ll use the pin 32.

We only need to configure our Wifi network, connect to our MQTT server and emit the potentiometer value within each loop.

#include <PubSubClient.h>
#include <WiFi.h>

const int potentiometerPin = 32;

// Wifi configuration
const char* ssid = "my_wifi_ssid";
const char* password = "my_wifi_password";

// MQTT configuration
const char* server = "192.168.1.111";
const char* topic = "/pot";
const char* clientName = "com.gonzalo123.esp32";

String payload;

WiFiClient wifiClient;
PubSubClient client(wifiClient);

void wifiConnect() {
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("WiFi connected.");
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());
}

void mqttReConnect() {
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (client.connect(clientName)) {
      Serial.println("connected");
    } else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      delay(5000);
    }
  }
}

void mqttEmit(String topic, String value)
{
  client.publish((char*) topic.c_str(), (char*) value.c_str());
}

void setup() {
  Serial.begin(115200);

  wifiConnect();
  client.setServer(server, 1883);
  delay(1500);
}

void loop() {
  if (!client.connected()) {
    mqttReConnect();
  }
  int current = (int) ((analogRead(potentiometerPin) * 100) / 4095);
  mqttEmit(topic, (String) current);
  delay(500);
}

Mqtt listener

The esp32 emits an event (“/pot”) with the value of the potentiometer. So we’re going to create a MQTT listener that listen to MQTT and persits the value to InfluxDB.

import paho.mqtt.client as mqtt
from influxdb import InfluxDBClient
import datetime
import logging


def persists(msg):
    current_time = datetime.datetime.utcnow().isoformat()
    json_body = [
        {
            "measurement": "pot",
            "tags": {},
            "time": current_time,
            "fields": {
                "value": int(msg.payload)
            }
        }
    ]
    logging.info(json_body)
    influx_client.write_points(json_body)


logging.basicConfig(level=logging.INFO)
influx_client = InfluxDBClient('docker', 8086, database='iot')
client = mqtt.Client()

client.on_connect = lambda self, mosq, obj, rc: self.subscribe("/pot")
client.on_message = lambda client, userdata, msg: persists(msg)

client.connect("docker", 1883, 60)

client.loop_forever()

Grafana
In grafana we need to do two things. First to create one datasource from our InfluxDB server. It’s pretty straightforward to it.

Finally we’ll create a dashboard. We only have one time-serie with the value of the potentiometer. I must admit that my dasboard has a lot things that I’ve created only for fun.

Thats the query that I’m using to plot the main graph

SELECT
  last("value") FROM "pot"
WHERE
  time >= now() - 5m
GROUP BY
  time($interval) fill(previous)

Here we can see the dashboard

And here my alert configuration:

I’ve also created a notification channel with a webhook. Grafana will use this web hook to notify when the state of alert changes

Webhook listener
Grafana will emit a webhook, so we’ll need an REST endpoint to collect the webhook calls. I normally use PHP/Lumen to create REST servers but in this project I’ll use Python and Flask.

We need to handle HTTP Basic Auth and emmit a MQTT event. MQTT is a very simple protocol but it has one very nice feature that fits like hat fits like a glove here. Le me explain it:

Imagine that we’ve got our system up and running and the state is “ok”. Now we connect one device (for example one big red/green lights). Since the “ok” event was fired before we connect the lights, our green light will not be switch on. We need to wait util “alert” event if we want to see any light. That’s not cool.

MQTT allows us to “retain” messages. That means that we can emit messages with “retain” flag to one topic and when we connect one device later to this topic, it will receive the message. Here it’s exactly what we need.

from flask import Flask
from flask import request
from flask_httpauth import HTTPBasicAuth
import paho.mqtt.client as mqtt
import json

client = mqtt.Client()

app = Flask(__name__)
auth = HTTPBasicAuth()

# http basic auth credentials
users = {
    "user": "password"
}


@auth.get_password
def get_pw(username):
    if username in users:
        return users.get(username)
    return None


@app.route('/alert', methods=['POST'])
@auth.login_required
def alert():
    client.connect("docker", 1883, 60)
    data = json.loads(request.data.decode('utf-8'))
    if data['state'] == 'alerting':
        client.publish(topic="/alert", payload="1", retain=True)
    elif data['state'] == 'ok':
        client.publish(topic="/alert", payload="0", retain=True)

    client.disconnect()

    return "ok"


if __name__ == "__main__":
    app.run(host='0.0.0.0')

Nodemcu

Finally the Nodemcu. This part is similar than the esp32 one. Our leds are in pins 4 and 5. We also need to configure the Wifi and connect to to MQTT server. Nodemcu and esp32 are similar devices but not the same. For example we need to use different libraries to connect to the wifi.

This device will be listening to the MQTT event and trigger on led or another depending on the state

#include <PubSubClient.h>
#include <ESP8266WiFi.h>

const int ledRed = 4;
const int ledGreen = 5;

// Wifi configuration
const char* ssid = "my_wifi_ssid";
const char* password = "my_wifi_password";

// mqtt configuration
const char* server = "192.168.1.111";
const char* topic = "/alert";
const char* clientName = "com.gonzalo123.nodemcu";

int value;
int percent;
String payload;

WiFiClient wifiClient;
PubSubClient client(wifiClient);

void wifiConnect() {
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("WiFi connected.");
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());
}

void mqttReConnect() {
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (client.connect(clientName)) {
      Serial.println("connected");
      client.subscribe(topic);
    } else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      delay(5000);
    }
  }
}

void callback(char* topic, byte* payload, unsigned int length) {

  Serial.print("Message arrived [");
  Serial.print(topic);

  String data;
  for (int i = 0; i < length; i++) {
    data += (char)payload[i];
  }
  cleanLeds();
  int value = data.toInt();
  switch (value)  {
    case 1:
      digitalWrite(ledRed, HIGH);
      break;
    case 0:
      digitalWrite(ledGreen, HIGH);
      break;
  }
  Serial.print("] value:");
  Serial.println((int) value);
}

void cleanLeds() {
  digitalWrite(ledRed, LOW);
  digitalWrite(ledGreen, LOW);
}

void setup() {
  Serial.begin(9600);
  pinMode(ledRed, OUTPUT);
  pinMode(ledGreen, OUTPUT);
  cleanLeds();
  Serial.println("start");

  wifiConnect();
  client.setServer(server, 1883);
  client.setCallback(callback);

  delay(1500);
}

void loop() {
  Serial.print(".");
  if (!client.connected()) {
    mqttReConnect();
  }

  client.loop();
  delay(500);
}

Here you can see the working prototype in action

And here the source code
